Brand: Mitutoyo

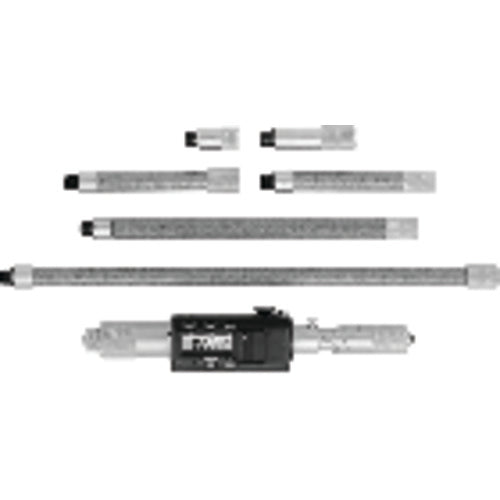

Mitutoyo MT80337-303 8"-40" Range-0.001" Gradiation - Carbide Tipped Measuring Face - Electronic Tubular Inside Micrometer
SKU: FTS-MT80337-303
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Mitutoyo MT80337-303 8"-40" Range-0.001" Gradiation - Carbide Tipped Measuring Face - Electronic Tubular Inside MicrometerFull Description
| Type | Electronic Tubular Inside Micrometer | Includes | LCD display |
| Minimum Measurement | 8" / 200 mm | Model No | 337-303 |
| Maximum Measurement | 40" / 1000 mm | Measuring Range | 8"-40" / 200 mm-1000 mm |
| Accuracy | +/- (0.00012" +(0.00004xR/2)) *RMax measuring length (inch) fraction rounded up. | Micrometer Type | Inside |
| Thimble Type | Friction | Resolution | 0.0001" / 0.001 mm |
| Measuring Face Material | Carbide | Head Travel | 1 |
| Maximum Extension Rod Length | 1", 2", 4" (2 pieces), 8", 12" | Number of Anvils/Rods | 6 |
• SPC output• LCD display• Hold Zero/ABS• Inch/metric conversion• Preset push-button• Metal extension rods with their own internal standards• Head travel 1"• .0001"/0.001mm Graduation
