Brand: Newall

Newall MS3330143606BK3 14x36x63-Axis Quill Milling Package

SKU: FTS-MS3330143606BK3
MPN: N30143606BK3-AAA11

$1,573.40
Unit price per
Save $34.43

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*This is a Berkshire eSupply item*
Please note, Berkshire has many challenges with delivery dates, discontinued items, etc. Unfortunately, this is beyond our control and we cannot be held responsible for such. Any and all cancelled orders due to circumstances beyond Freers control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.

Short Description

Newall MS3330143606BK3 14x36x63-Axis Quill Milling Package

Full Description

Type	Digital Readout System	Z-Axis Stage Travel	6"
Number of Axis	3	Machine Compatibility	Milling Applications
X-Axis Stage Travel	14"	Scale Type	Quill
Y-Axis Stage Travel	36"

Remarks

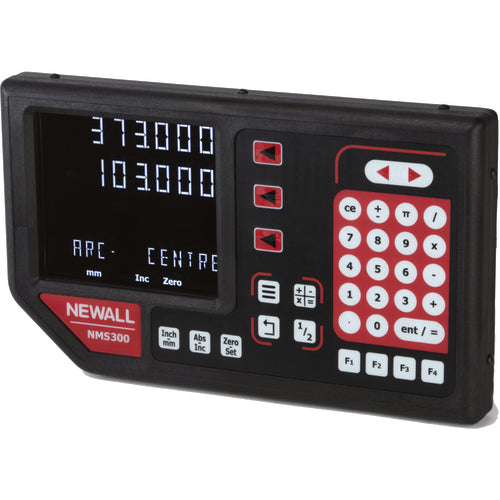

• NMS300 Digital Readout• Spherosyn300 Scales (3 ax package with quill includes Microsyn300)• Scale Guards• NMS300 Reader Heads • Scale Support Brackets• Reader Head Mounting Bracket Kit; Two axis packages will include BPK01 (Metric); Three axis with knee will include BPK01 and KBK01 (Metric); Three axis with quill will include BPK01 and QBK01 (Metric)• Display Mounting Arm• Features• 2 or 3 Axis• Multiple Language• 4 User Defineable Function Keys• Absolute/Incremental operation• Axis Pre-Set / Zero reset• Inch/mm conversion• Linear/segmented Error Compensation• DigiFind/Refernce mark• Centre Find• Undo Function
