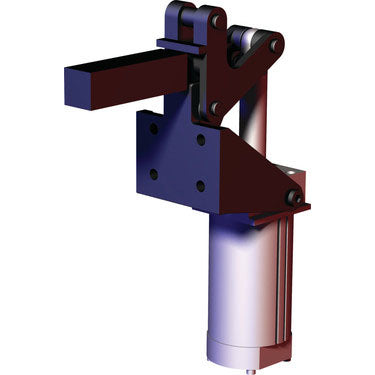

DESTACO 868-E PNEUMATIC HOLD DOWN CLAMP WITH G-PORTS
SKU: DE-STA-CO-868-E
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO 868-E PNEUMATIC HOLD DOWN TOGGLE CLAMP WITH G-PORTS is the perfect choice for all your clamping needs. With a built-in flow control for smooth operation and a magnetic ring piston for precise position sensing, this clamp can accommodate both T-slot and round sensors. Its hardened pins and bushings ensure a long lifespan, while the large, solid clamping arm can be easily modified to fit your specific application. With a maximum holding capacity of 4,000 lbsf and a 4.690 inch clamp arm length, this pneumatic toggle clamp is a versatile and reliable choice for any project. Get yours today and experience the power of DESTACO!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 868-E PNEUMATIC HOLD DOWN CLAMP WITH G-PORTS
Product Details
A larger version of model 827. Mounts perpendicular to the clamping surface. Features built-in flow control for smooth operation and magnetic ring piston for position sensing. Accommodates either T-slot (8EA-109-1) or round (810169) sensors.
- Hardened pins and bushing at all pivot points for long lifecycle
- Large, solid clamping arm is easily modified to suit application requirements
- Sensor ready for round or T-slot style sensors
- Replacement Clamp Assembly: 868-LC
| Maximum Holding Capacity (lbsf) | 4,000 |
| Clamp Arm Length (in) | 4.690 |
| Height Under Clamp Arm (in) | 4.200 |
| Cylinder Bore (in) | 2.48 |
| Clamp Arm Style | solid |
| Air Port size | G-1/4 |
| Application - Welding | Excellent/High |
| Application - Assembly | Excellent/High |
| Duty Cycle | Excellent/High |
| Operating Temperature | -10° to 90°C (-14° to 194° F) |
| Product Type | Pneumatic Toggle Clamp |
| Exerting Force (lbf) | 1,704 |
| Air Consumption (ft³) | 0.109 |
| Replacement Seal Kit | 850450-63-1-00 |
| Weight (lb) | 17.00 |
| Product Series Description | Toggle Clamp |
| Product Function | Clamping |
| Product Family | Light-Duty Pneumatic Clamping |
| Product Group | standard pneumatic clamps |
