Brand: DESTACO

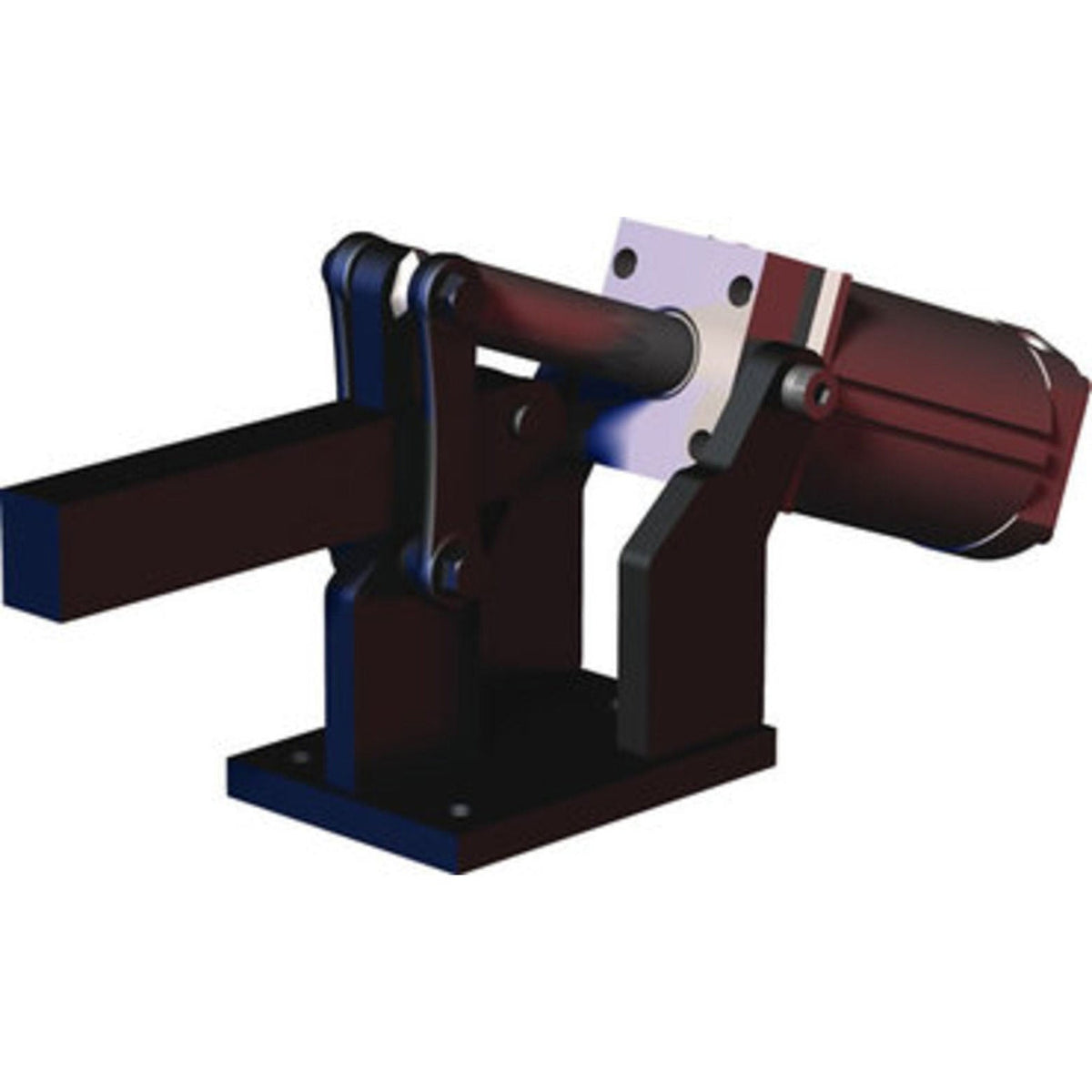

DESTACO 858-E PNEUMATIC HOLD DOWN CLAMP WITH G-PORTS
SKU: DE-STA-CO-858-E
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Experience the power of the DESTACO 858-E PNEUMATIC HOLD DOWN CLAMP WITH G-PORTS. This pneumatic version of Destaco's manual clamp, model 558, features a built-in flow control system for smooth operation and a magnetic ring piston for precise position sensing. It also accommodates both T-slot and round sensors for added versatility. With hardened pins and bushings at all pivot points, this clamp is built to last. The large clamping arm, which can be easily modified, offers a solid and secure hold. Plus, it is sensor-ready for both round and T-slot style sensors. With a maximum holding capacity of 4,000 lbsf, a 4.810 inch clamping arm length, and a 3.850 inch height under the clamp arm, this clamp is sure to meet all your needs. The 2.48 inch cylinder bore and G-1/4 air port make this a robust and reliable pneumatic toggle clamp.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 858-E PNEUMATIC HOLD DOWN CLAMP WITH G-PORTS
Product Details
Pneumatic version of our manual clamp model 558. Pneumatic cylinder features built in flow control for smooth operation and magnetic ring piston for position sensing. Accomodates either T-slot (8EA-109-1) or round (810169) sensors.
- Hardened pins and bushing at all pivot points for long life
- Large, solid clamping arm is easily modified to suit application requirements
- Sensor ready for round or T-slot style sensors
- Replacement Clamp Assembly: 858-LC
Maximum Holding Capacity (lbsf) | 4,000 |
Clamp Arm Length (in) | 4.810 |
Height Under Clamp Arm (in) | 3.850 |
Cylinder Bore (in) | 2.48 |
Air Port size | G-1/4 |
Clamp Arm Style | solid |
Application - Welding | Excellent/High |
Application - Assembly | Excellent/High |
Duty Cycle | Excellent/High |
Operating Temperature | -10° to 90°C (-14° to 194° F) |
Product Type | Pneumatic Toggle Clamp |
Exerting Force (lbf) | 1,530 |
Air Consumption (ft³) | 0.109 |
Replacement Seal Kit | 850450-63-1-00 |
Weight (lb) | 16.11 |
Product Series Description | Toggle Clamp |
Product Function | Clamping |
Product Family | Light-Duty Pneumatic Clamping |
Product Group | standard pneumatic clamps |
