Brand: Iscar

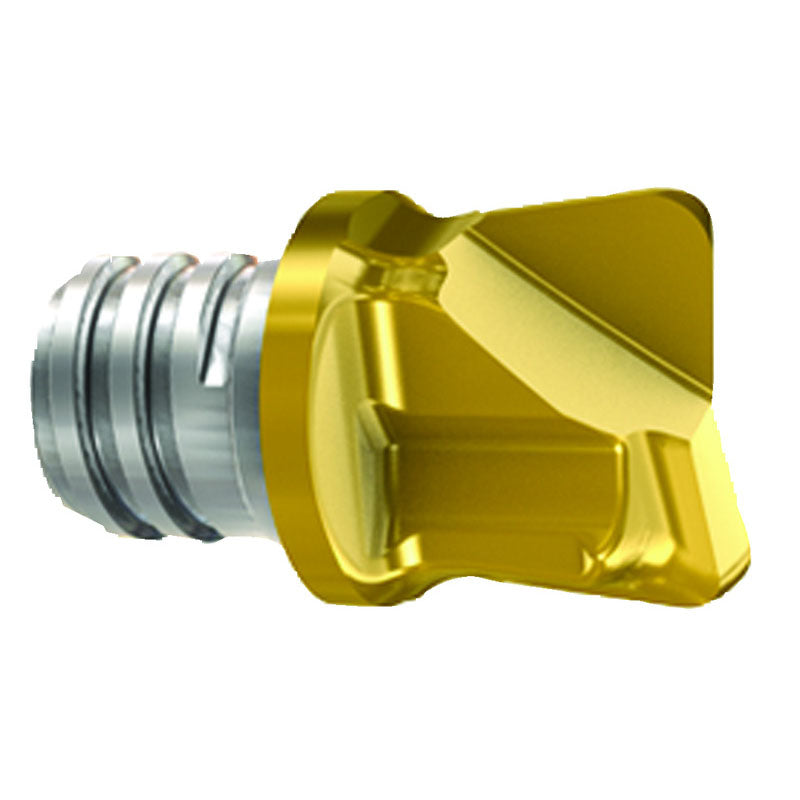

Iscar EH5605594 MM HT200N11R8.0-2T12 IC908
SKU: FTS-EH5605594
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5605594 MM HT200N11R8.0-2T12 IC908Full Description
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Slotting | Undercutting | | Grade | IC908 |
| Cutting Diameter (DC) | 0.787" | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | | Tool Cutting Edge Angle (KAPR) | 97 Degrees |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Corner Radius (RE) | 0.315" | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T12 | End Shape | Profile |
| Depth of Cut Maximum (APMX) | 0.429" | Tool Type | Solid carbide center cutting endmills 90° |
| Connection Diameter Machine Side (DCONMS) | 0.726" | Body Material | Carbide |
| Functional Length (LF) | 0.681" | Connection Code Machine Side (CCMS) | MultiMaster |
| Overall Length (OAL) | 1.224" |
Family Description
Interchangeable 2 flute torodial solid carbide milling heads.
For Clamping keys (should be ordered separately), tightening torques and clamping instructions, click on "More Info". Do not apply lubricant to the threaded connection.
