Brand: Iscar

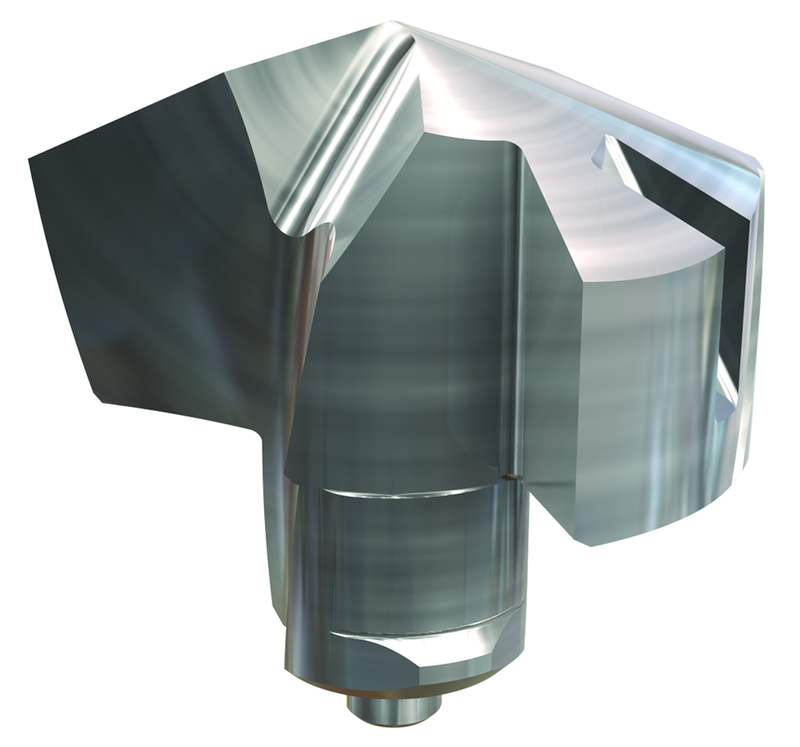

Iscar EH5605164 MM HDF120-090-2T06 IC908
SKU: FTS-EH5605164
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5605164 MM HDF120-090-2T06 IC908Full Description
| Application | | Chamfering & Bottom Deburring | Countersinking | | Coating | TiAlN |
| Cutting Diameter (DC) | 0.465" | Profile Angle (PRFA) | 90 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Connection Thread Nominal Size Machine Side (THSZMS) | T06 | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.366" | End Shape | Chamfer|Countersink |
| Functional Length (LF) | 0.441" | Tool Type | Solid chamfering endmills |
| Overall Length (OAL) | 0.703" | Body Material | Carbide |
| Grade | IC908 | Connection Code Machine Side (CCMS) | MultiMaster |
Family Description
Interchangeable 2 flute solid carbide heads for upper and bottom chamfering.
For tightening torques and clamping instructions, click on "More Info" Do not apply lubricant to the threaded connection
