Brand: Iscar

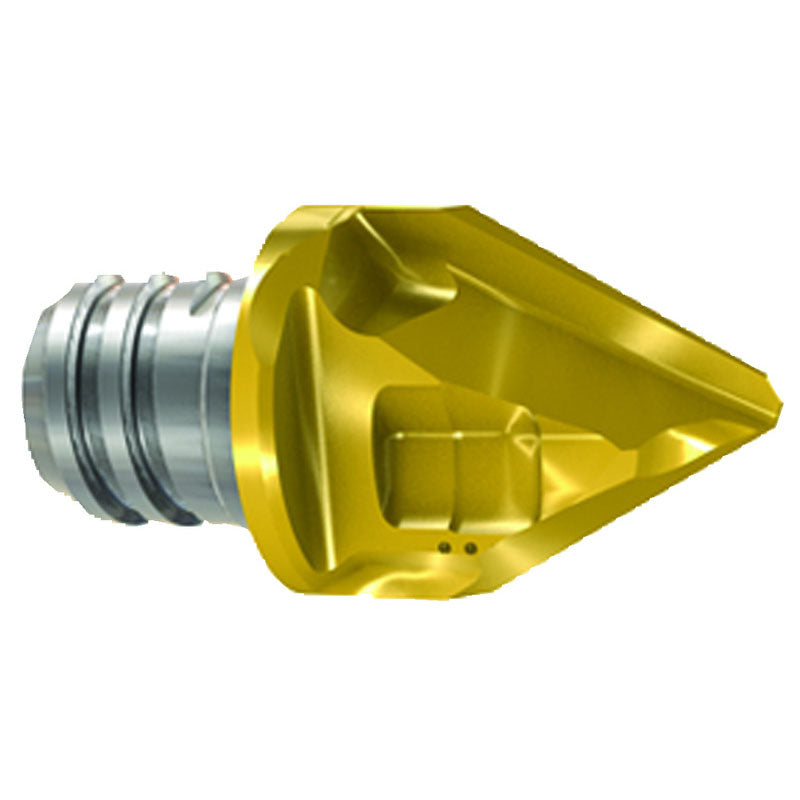

Iscar EH5606496 MM HCD200-060-2T12 IC908
SKU: FTS-EH5606496
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5606496 MM HCD200-060-2T12 IC908Full Description
| Application | | Countersinking | Drill Mill | Slanted Shoulder & Chamfer | | Grade | IC908 |
| Cutting Diameter (DC) | 0.098" | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | | Profile Angle (PRFA) | 140 |
| Flute Count (NOF) | 2 | Tool Cutting Edge Angle (KAPR) | 30 Degrees |
| Connection Thread Nominal Size Machine Side (THSZMS) | T12 | Measurement Type | Inch |
| Cutting Diameter Maximum (DCX) | 0.787" | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.717" | End Shape | Chamfer|Countersink |
| Connection Diameter Machine Side (DCONMS) | 0.726" | Tool Type | Solid chamfering endmills |
| Functional Length (LF) | 0.972" | Body Material | Carbide |
| Overall Length (OAL) | 1.516" | Connection Code Machine Side (CCMS) | MultiMaster |
Family Description
Interchangeable 2 flute solid carbide heads for chamfering, countersinking and spot drilling.
For Clamping keys (should be ordered separately), tightening torques and clamping instructions, click on "More Info". Do not apply lubricant to the threaded connection.
