Brand: Iscar

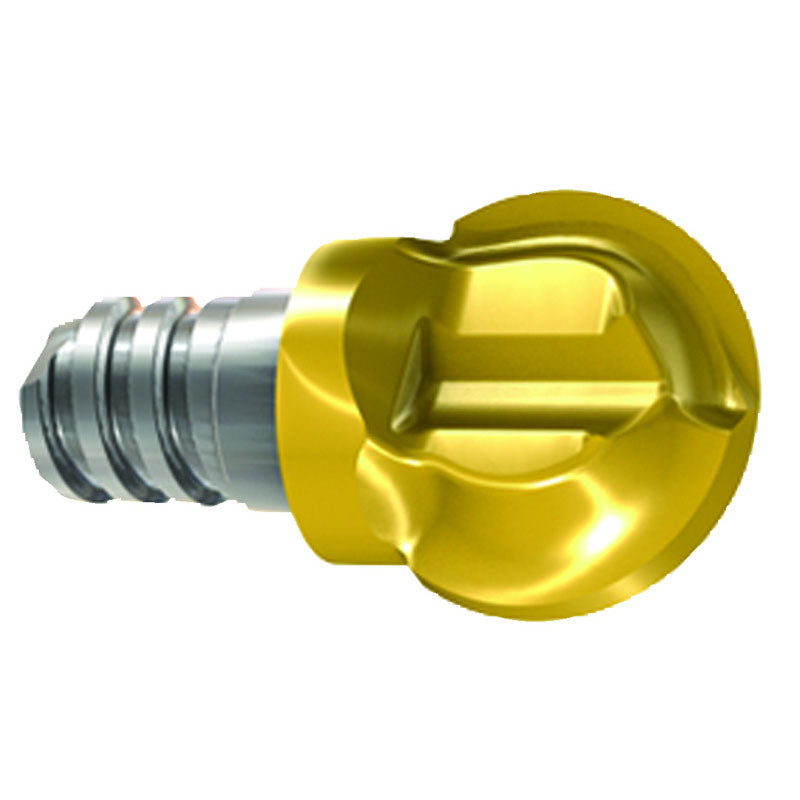

Iscar EH5621630 MM HBR160-2T08 IC908
SKU: FTS-EH5621630
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5621630 MM HBR160-2T08 IC908Full Description
| Application | | Profiling | | Grade | IC908 |
| Cutting Diameter (DC) | 0.63" | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | Tool Type | Solid ball nose |
| Connection Diameter Machine Side (DCONMS) | 0.48" | Body Material | Carbide |
| Functional Length (LF) | 0.606" | Connection Code Machine Side (CCMS) | MultiMaster |
| Overall Length (OAL) | 0.919" |
Family Description
MULTI-MASTER, high accuracy (h7 milling head diameter), may be used for both roughing and precision finishing applications. Center cutting, 240° spherical cutting profile. Recommended for finishing and may be used on hardened steel.
For tightening torques and clamping instructions, click on "More Info" Do not apply lubricant to the threaded connection.
