Brand: Iscar

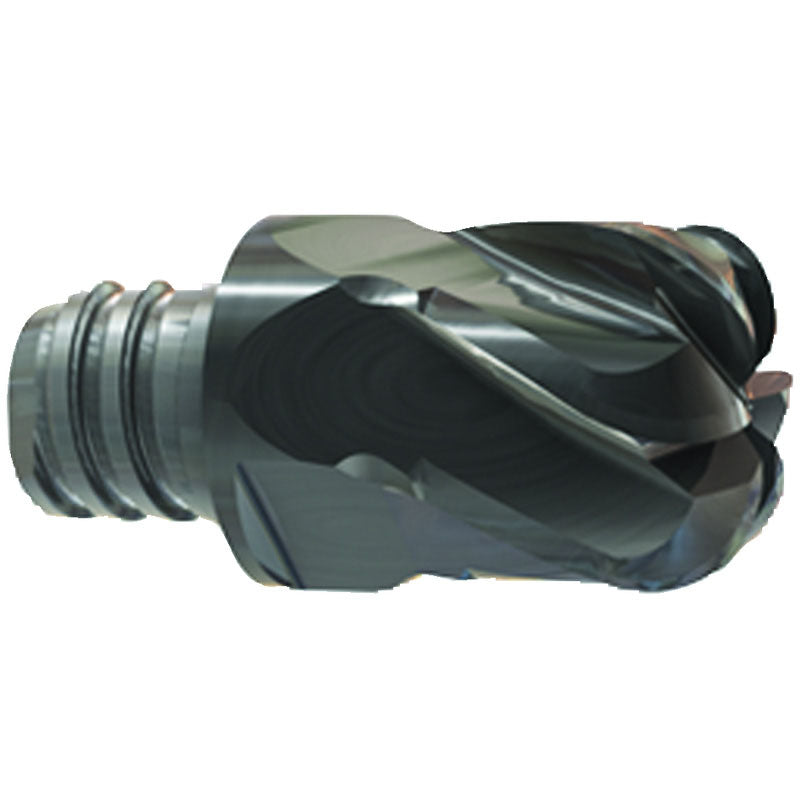

Iscar EH5622263 MM ETR.375A19R031-6T06 90 IC908
SKU: FTS-EH5622263
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5622263 MM ETR.375A19R031-6T06 90 IC908Full Description
| Application | | Helical Interpolation | Profiling | Rampdown | Slotting | | Overall Length (OAL) | 0.772" |
| Cutting Diameter (DC) | 3/8" | Grade | IC908 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | | Coating | TiAlN |
| Flute Count (NOF) | 6 | Measurement Type | Inch |
| Corner Radius (RE) | 0.031" | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T06 | End Shape | Ball Nose |
| Depth of Cut Maximum (APMX) | 0.19" | Ramping Angle Maximum (RMPX) | 9 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.36" | Tool Type | Solid ball nose |
| Functional Length (LF) | 0.51" | Body Material | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees | Connection Code Machine Side (CCMS) | MultiMaster |
Family Description
Interchangeable 6 flute torodial solid carbide milling heads.
For clamping keys (should be ordered separately), tightening torques and clamping instructions, click on "More Info". Do not apply lubricant to the threaded connection.
