Brand: Iscar

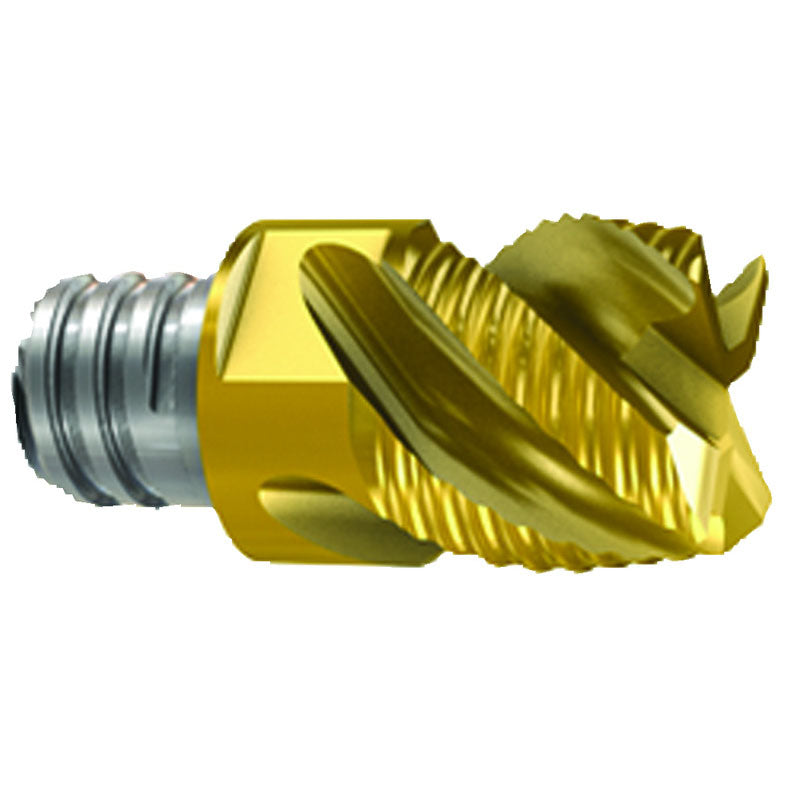

Iscar EH5622032 MM ERS200B15-6T12 IC908
SKU: FTS-EH5622032
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5622032 MM ERS200B15-6T12 IC908Full Description
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Coating | TiAlN |
| Cutting Diameter (DC) | 0.787" | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 6 | Corner Chamfer Width (CHW) | 0.016" |
| Connection Thread Nominal Size Machine Side (THSZMS) | T12 | Measurement Type | Inch |
| Cutting Diameter Maximum (DCX) | 0.787" | fz(max) | 0.0043 "/tooth |
| Depth of Cut Maximum (APMX) | 0.591" | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.726" | End Shape | 90° Rougher |
| Functional Length (LF) | 1.004" | Ramping Angle Maximum (RMPX) | 3 Degrees |
| Flute Helix Angle (FHA) | 45 Degrees | Tool Type | Solid carbide non center cutting endmills 90° |
| Overall Length (OAL) | 1.547" | Body Material | Carbide |
| Grade | IC908 | Connection Code Machine Side (CCMS) | MultiMaster |
Family Description
Interchangeable solid carbide rough milling heads, for high metal removal applications.
For Clamping keys (should be ordered separately), tightening torques and clamping instructions, click on "More Info". Do not apply lubricant to the threaded connection.
