Brand: Iscar

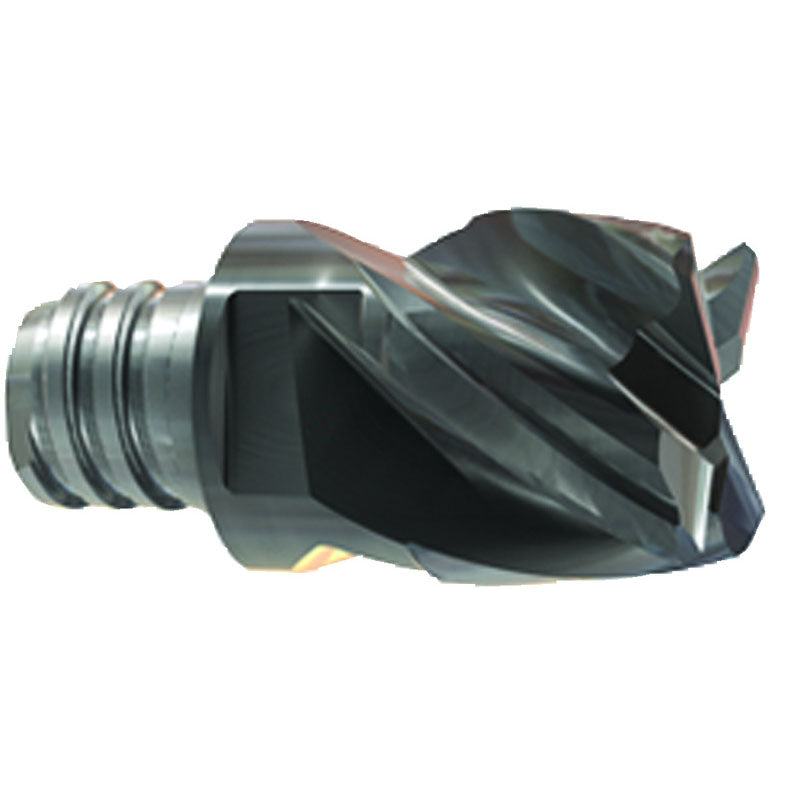

Iscar EH5623028 MM EC120E09R05CF-4T08 IC908
SKU: FTS-EH5623028
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5623028 MM EC120E09R05CF-4T08 IC908Full Description
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Grade | IC908 |
| Cutting Diameter (DC) | 12 mm | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Corner Radius (RE) | 0.5 mm | Measurement Type | Metric |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | fz(max) | 0.11 mm/tooth |
| Cutting Diameter Maximum (DCX) | 12 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 9 mm | End Shape | 90° |
| Connection Diameter Machine Side (DCONMS) | 11.7 mm | Ramping Angle Maximum (RMPX) | 90 Degrees |
| Functional Length (LF) | 16.5 mm | Tool Type | Solid carbide center cutting endmills 90° |
| Flute Helix Angle (FHA) | 38 Degrees | Body Material | Carbide |
| Overall Length (OAL) | 24.45 mm | Connection Code Machine Side (CCMS) | MultiMaster |
Family Description
MULTI-MASTER interchangeable solid carbide heads with 38° helix and variable pitch for roughing and finishing operations.High material removal rates CHATTERFREE. Used for machining alloyed and stainless steel and exotic materials.
For Clamping keys (should be ordered separately), tightening torques and clamping instructions, click on "More Info". Do not apply lubricant to the threaded connection.
