Brand: Iscar

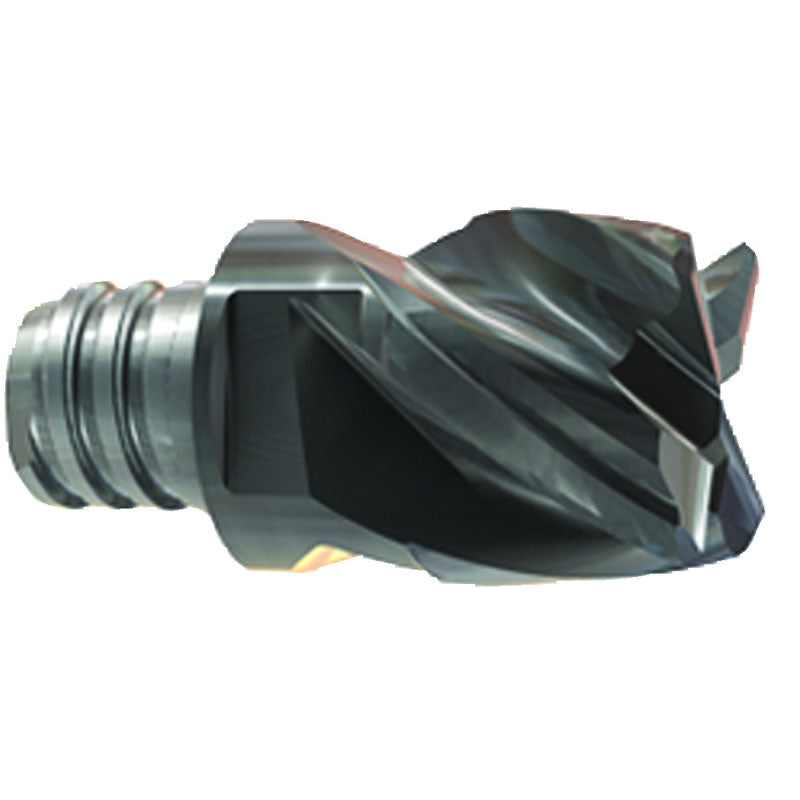

Iscar EH5622629 MM EC1.00E86C6CF-4T15 IC908
SKU: FTS-EH5622629
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5622629 MM EC1.00E86C6CF-4T15 IC908Full Description
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Coolant Supply Property (CSP) | External |
| Cutting Diameter (DC) | 1" | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | | Corner Chamfer Width (CHW) | 0.024" |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Connection Thread Nominal Size Machine Side (THSZMS) | T15 | fz(max) | 0.007 "/tooth |
| Depth of Cut Maximum (APMX) | 0.893" | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.94" | End Shape | 90° |
| Functional Length (LF) | 1.456" | Ramping Angle Maximum (RMPX) | 90 Degrees |
| Flute Helix Angle (FHA) | 38 Degrees | Tool Type | Solid carbide center cutting endmills 90° |
| Overall Length (OAL) | 2.149" | Body Material | Carbide |
| Grade | IC908 | Connection Code Machine Side (CCMS) | MultiMaster |
| Coating | TiAlN |
Family Description
MULTI-MASTER interchangeable solid carbide heads with 38° helix and variable pitch for roughing and finishing operations.High material removal rates CHATTERFREE. Used for machining alloyed and stainless steel and exotic materials.
For Clamping keys (should be ordered separately), tightening torques and clamping instructions, click on "More Info". Do not apply lubricant to the threaded connection.
