Brand: Iscar

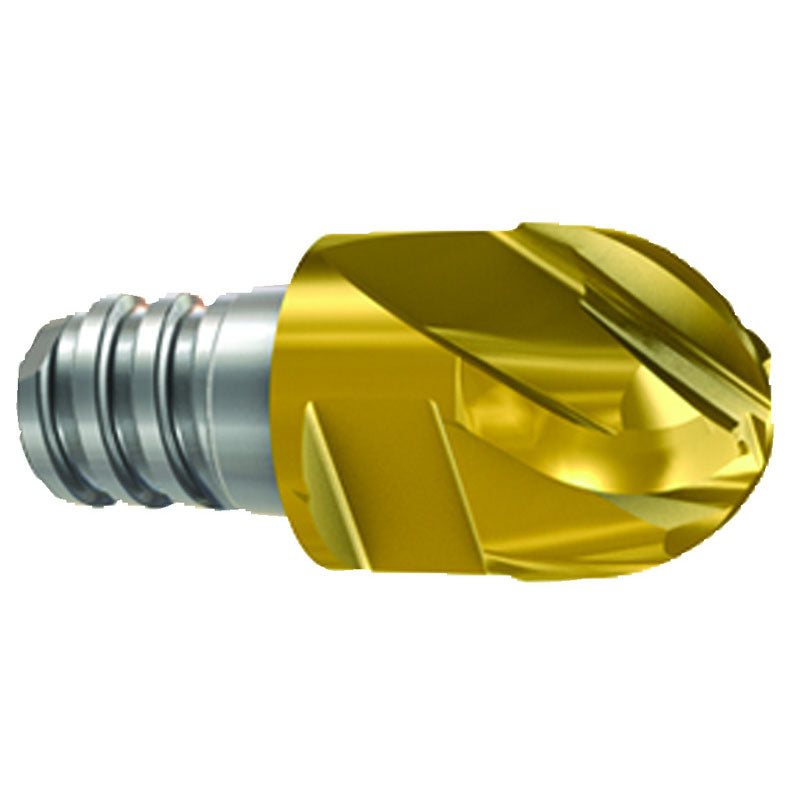

Iscar EH5622624 MM EBA250B22-2T15 IC08
SKU: FTS-EH5622624
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5622624 MM EBA250B22-2T15 IC08Full Description
| Application | | Profiling | | Overall Length (OAL) | 2.15" |
| Cutting Diameter (DC) | 0.984" | Grade | IC08 |
| Applicable Material | | Non Ferrous Metals | | Coating | Uncoated |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Corner Radius (RE) | 0.0005" | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T15 | End Shape | Ball Nose |
| Depth of Cut Maximum (APMX) | 0.866" | Tool Type | Solid ball nose |
| Connection Diameter Machine Side (DCONMS) | 0.941" | Body Material | Carbide |
| Functional Length (LF) | 1.457" | Connection Code Machine Side (CCMS) | MultiMaster |
| Flute Helix Angle (FHA) | 45 Degrees |
Family Description
Interchangeable 2 flute high precision solid carbide ball nose heads for machining aluminum.
For Clamping keys (should be ordered separately), tightening torques and clamping instructions, click on "More Info". Do not apply lubricant to the threaded connection.
