Brand: Iscar

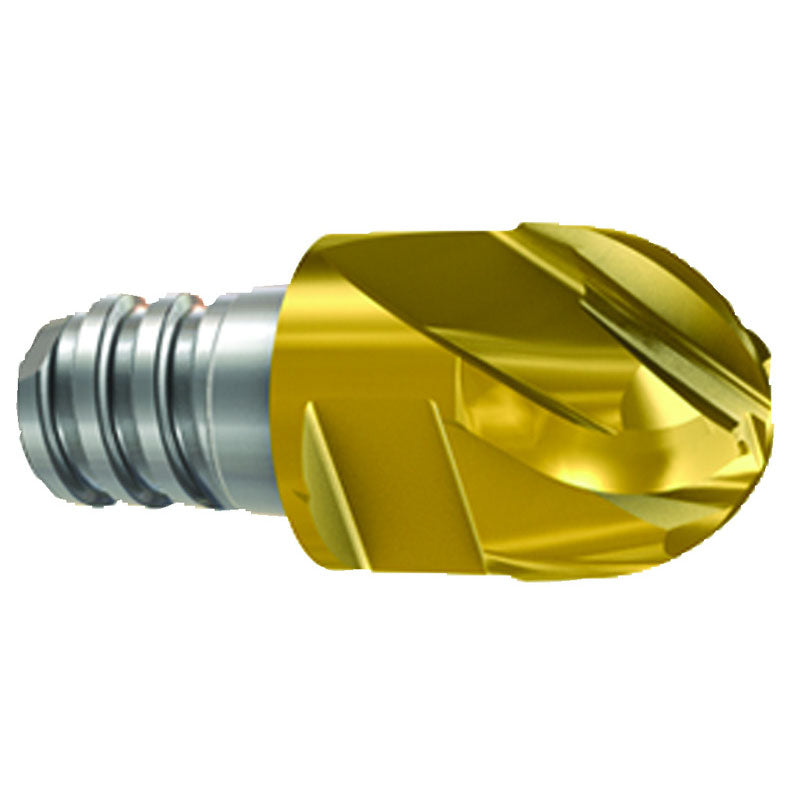

Iscar EH5622623 MM EB250A22-4T15 IC908
SKU: FTS-EH5622623
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5622623 MM EB250A22-4T15 IC908Full Description
| Application | | Profiling | | Overall Length (OAL) | 2.15" |
| Cutting Diameter (DC) | 0.984" | Grade | IC908 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | | Coating | TiAlN |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Corner Radius (RE) | 0.0005" | Measurement Type | Inch |
| Connection Thread Nominal Size Machine Side (THSZMS) | T15 | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.866" | End Shape | Ball Nose |
| Connection Diameter Machine Side (DCONMS) | 0.941" | Tool Type | Solid ball nose |
| Functional Length (LF) | 1.457" | Body Material | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees | Connection Code Machine Side (CCMS) | MultiMaster |
Family Description
MULTI-MASTER interchangeable solid carbide ball nose milling heads.
For Clamping keys (should be ordered separately), tightening torques and clamping instructions, click on "More Info". Do not apply lubricant to the threaded connection.
