Brand: Iscar

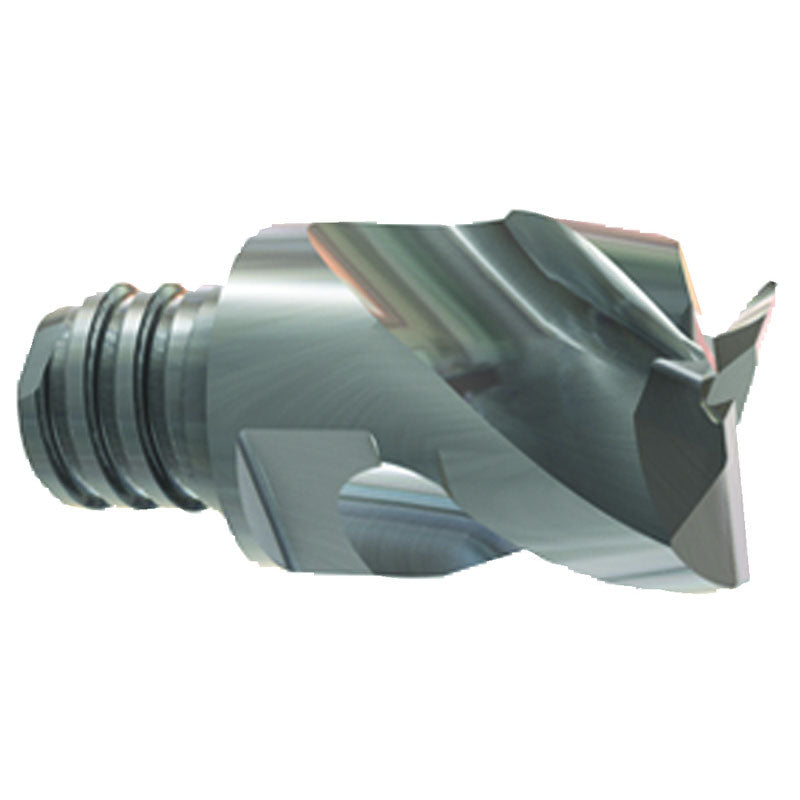

Iscar EH5623051 MM EA120H12R0.2CF-3T08 IC08
SKU: FTS-EH5623051
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5623051 MM EA120H12R0.2CF-3T08 IC08Full Description
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Grade | IC08 |
| Cutting Diameter (DC) | 0.472" | Coating | Uncoated |
| Applicable Material | | Non Ferrous Metals | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Corner Radius (RE) | 0.0079" | fz(max) | 0.0043 "/tooth |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 0.472" | End Shape | 90° Alum |
| Depth of Cut Maximum (APMX) | 0.472" | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.461" | Tool Type | Solid carbide center cutting endmills 90° |
| Functional Length (LF) | 0.906" | Body Material | Carbide |
| Flute Helix Angle (FHA) | 40 Degrees | Connection Code Machine Side (CCMS) | MultiMaster |
| Overall Length (OAL) | 1.218" |
Family Description
CHATTERFREE, MULTI-MASTER interchangeable solid carbide heads. 3 and 4 flute with 40° different helix, for machining aluminum. Excellent chatter dampening ability. Used for both roughing and finishing.
For Clamping keys (should be ordered separately), tightening torques and clamping instructions, click on "More Info". Do not apply lubricant to the threaded connection.
