Brand: Iscar

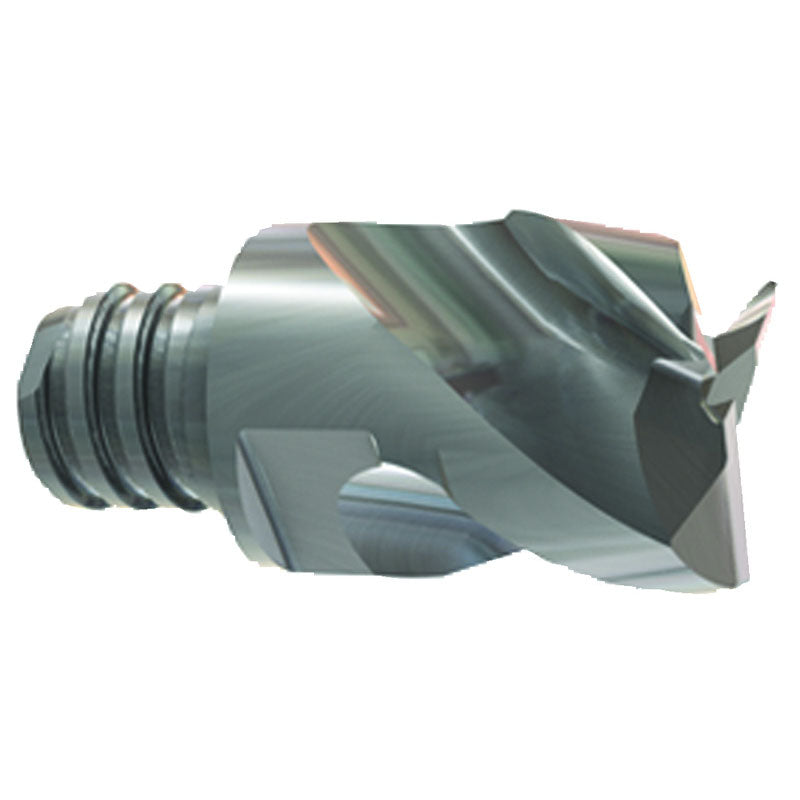

Iscar EH5622753 MM EA120B08R3.0-3T08 IC08
SKU: FTS-EH5622753
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5622753 MM EA120B08R3.0-3T08 IC08Full Description
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Grade | IC08 |
| Cutting Diameter (DC) | 0.472" | Coating | Uncoated |
| Applicable Material | | Non Ferrous Metals | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Corner Radius (RE) | 0.1181" | fz(max) | 0.0043 "/tooth |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 0.472" | End Shape | 90° Alum |
| Depth of Cut Maximum (APMX) | 0.315" | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.461" | Tool Type | Solid carbide center cutting endmills 90° |
| Functional Length (LF) | 0.65" | Body Material | Carbide |
| Flute Helix Angle (FHA) | 45 Degrees | Connection Code Machine Side (CCMS) | MultiMaster |
| Overall Length (OAL) | 0.963" |
Family Description
MULTI-MASTER, Interchangeable solid carbide slot drill milling heads with two or three 45° helix flutes. Used for machining aluminum.
For clamping keys (should be ordered separately), tightening torques and clamping instructions, click on "More Info". Do not apply lubricant to the threaded connection.
