Brand: Iscar

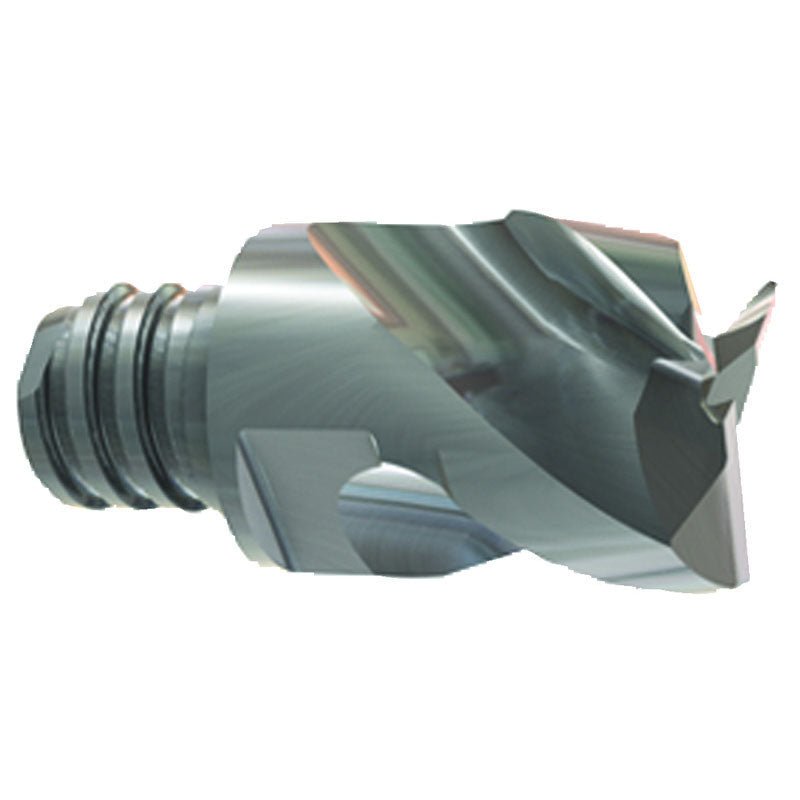

Iscar EH5622634 MM EA1.0H75R02-3T15 IC08
SKU: FTS-EH5622634
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5622634 MM EA1.0H75R02-3T15 IC08Full Description
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Grade | IC08 |
| Cutting Diameter (DC) | 1" | Coating | Uncoated |
| Applicable Material | | Non Ferrous Metals | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Corner Radius (RE) | 0.02" | fz(max) | 0.0063 "/tooth |
| Connection Thread Nominal Size Machine Side (THSZMS) | T15 | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 3/4" | End Shape | 90° Alum |
| Connection Diameter Machine Side (DCONMS) | 0.94" | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Functional Length (LF) | 1.44" | Tool Type | Solid carbide center cutting endmills 90° |
| Flute Helix Angle (FHA) | 40 Degrees | Body Material | Carbide |
| Overall Length (OAL) | 2.133" | Connection Code Machine Side (CCMS) | MultiMaster |
Family Description
CHATTERFREE, MULTI-MASTER interchangeable solid carbide heads. 3 and 4 flute with 40° different helix, for machining aluminum. Excellent chatter dampening ability. Used for both roughing and finishing.
For Clamping keys (should be ordered separately), tightening torques and clamping instructions, click on "More Info". Do not apply lubricant to the threaded connection.
