Brand: Iscar

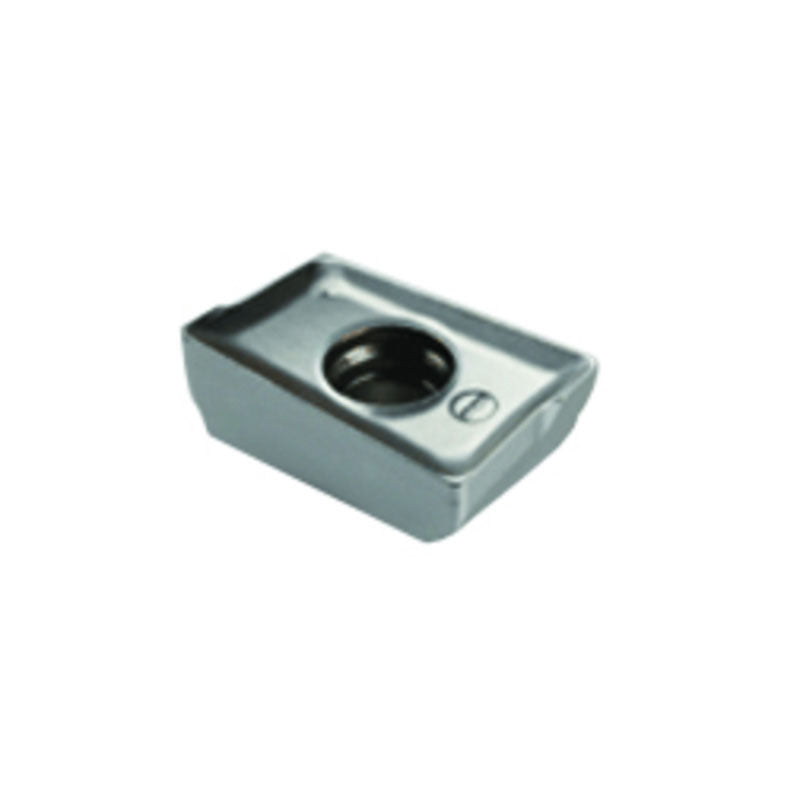

Iscar EH5602133 3M AXKT 2006PDTR IC950
SKU: FTS-EH5602133
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5602133 3M AXKT 2006PDTR IC950Full Description
| Applicable Material | | Steel | Cast Iron | | Shape | 85° Parallelogram |
| Application | | Counter Boring | Facing | Milling Inserts | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0118 "/tooth |
| Cutting Edge Length (L) | 0.886" | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 0.886" | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 0.0394" | Minimum Feed per Tooth (fz(min)) | 0.0059 "/tooth |
| Depth of Cut Maximum (APMX) | 0.787" | Cutting Edge Effective Length (LE) | 0.795" |
| Insert Width (W1) | 0.531" | Measurement Type | Inch |
| Insert Thickness (S) | 0.268" | Body Material | Carbide |
| Grade | IC950 |
Family Description
MILL2000 Heavy duty design: dovetail section shape, helical cutting edge and positive rake angle. Enable a secure clamping and high durability in rough applications.
Reduce feed by 50% during engagement and exit from the workpiece; this practice will substantially increase insert life.
