Brand: Iscar

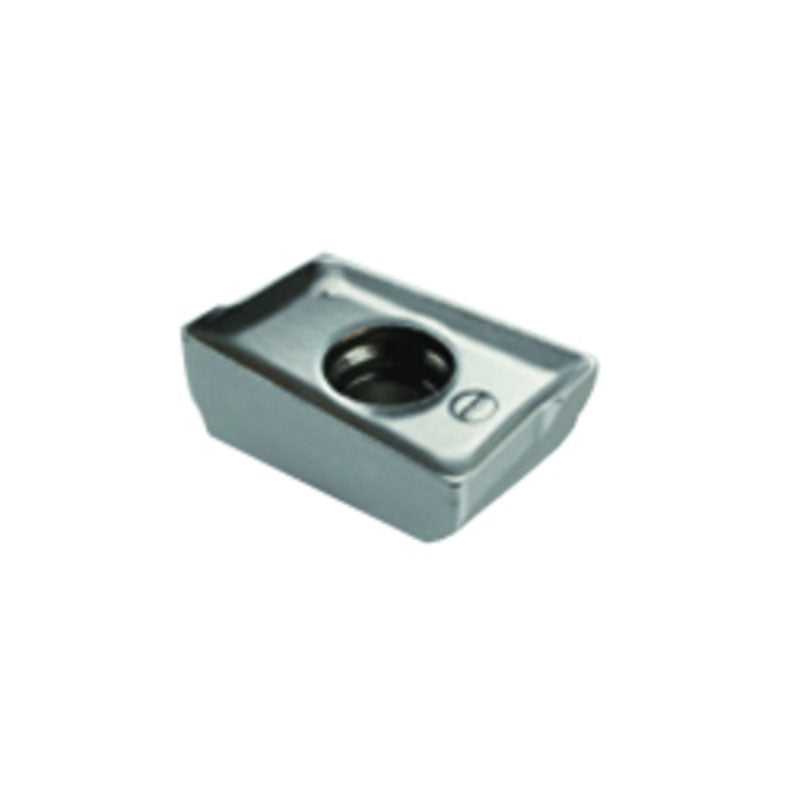

Iscar EH5602400 3M AXKT 2006PDTR IC4050
SKU: FTS-EH5602400
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5602400 3M AXKT 2006PDTR IC4050Full Description
| Cutting Edge Length (L) | 0.886" | Grade | IC4050 |
| Corner Radius (RE) | 0.039" | Shape | 85° Parallelogram |
| Depth of Cut Maximum (APMX) | 0.795" | Maximum Feed per Tooth (fz(max)) | 0.0118 inch/tooth |
| Insert Width (W1) | 0.531" | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.268" | Minimum Feed per Tooth (fz(min)) | 0.0059 inch/tooth |
| Wiper Edge Length (BS) | 0.12" |
Family Description
MILL2000 Heavy duty design: dovetail section shape, helical cutting edge and positive rake angle. Enable a secure clamping and high durability in rough applications.
Reduce feed by 50% during engagement and exit from the workpiece, this practice will substantially increase insert life.
