Brand: Maxx Edge

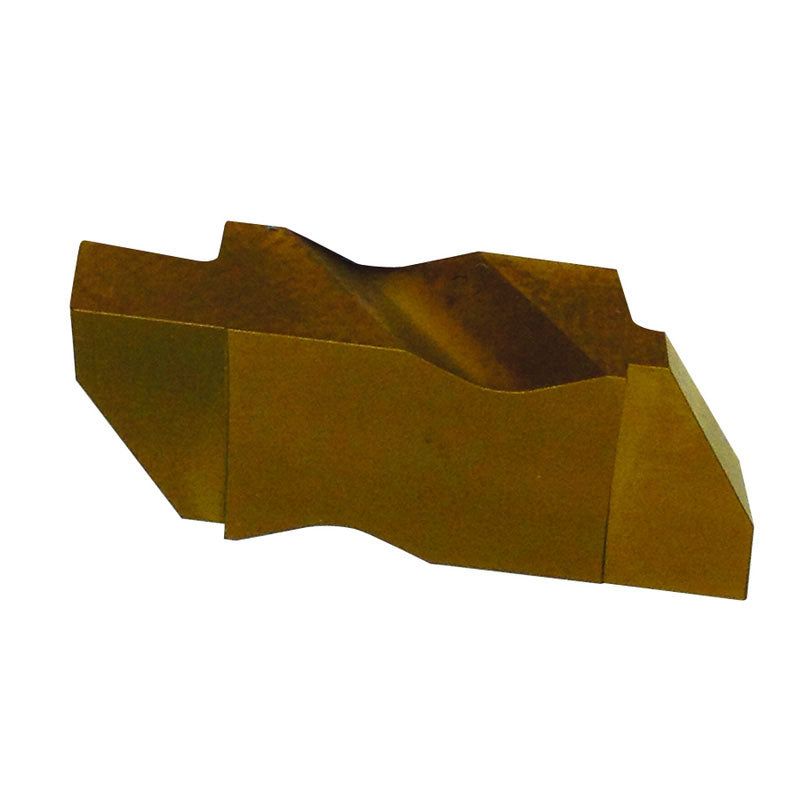

Maxx Edge ME1610015 MEGP 3062L Grade ME7135 - Grooving Insert
SKU: FTS-ME1610015
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Rapidkut ME1610015 MEGP 3062L Grade ME7135 - Grooving InsertFull Description
| Cutting Width (CW) | 0.062" | Shape | 86° Diamond |
| Corner Radius (RE) | 0.0075" | Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.094" | Applicable Material | Cast Iron|Hi-Temp Alloys|Stainless Steel|Steel |
| Insert Thickness (S) | 0.195" | Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 3/8" | Coating Process | CVD |
| Grade | ME7135 |
• Grade 7135 is a CVD Coated Insert Suitable for All Cutting Materials (Gold in color)
