Brand: Iscar

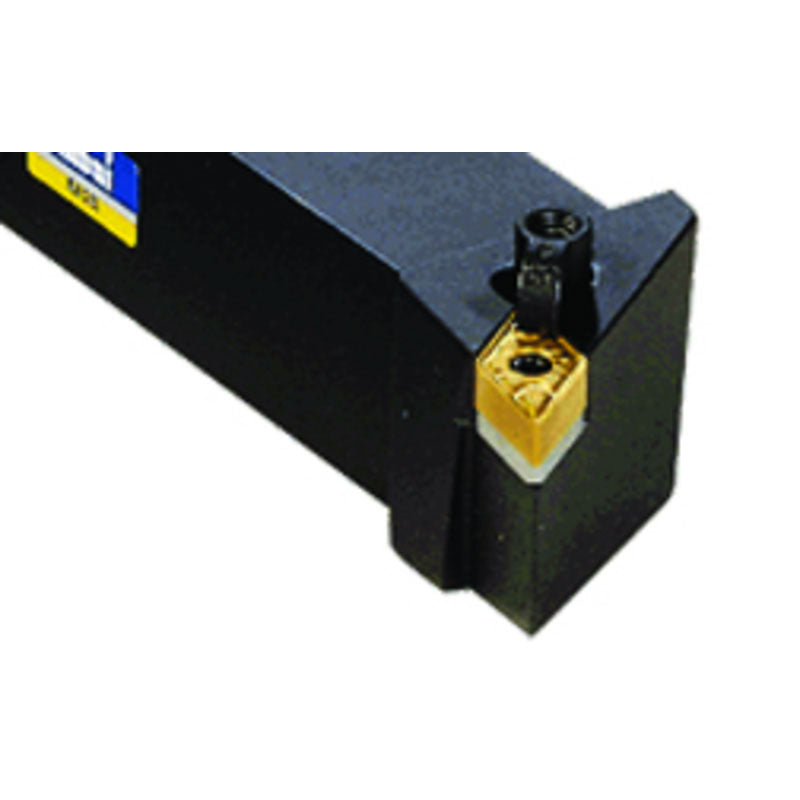

Iscar EH3601222 MDJNR 12-3
SKU: FTS-EH3601222
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 3601222 MDJNR 12-3Full Description
| Shank Height (H) | 3/4" | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Width (B) | 3/4" | Rake Angle Radial (GAMF) | -7 Degrees |
| Functional Length (LF) | 4-1/2" | Body Material | Steel |
| Head Length (LH) | 1.19" | Cutting Position | External |
| Functional Width (WF) | 1" | Clamping System | CL5 |
| Inscribed Circle Diameter (IC) | 3/8" | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | DN.. 3 | Style | MDJNR123 |
| Application | | Ext. 55° Diamond 93° Approach | | Insert Style | 4.5" |
Family Description
Comlock 93° lead angle holders for negative 55° inserts.
