Brand: Dorian

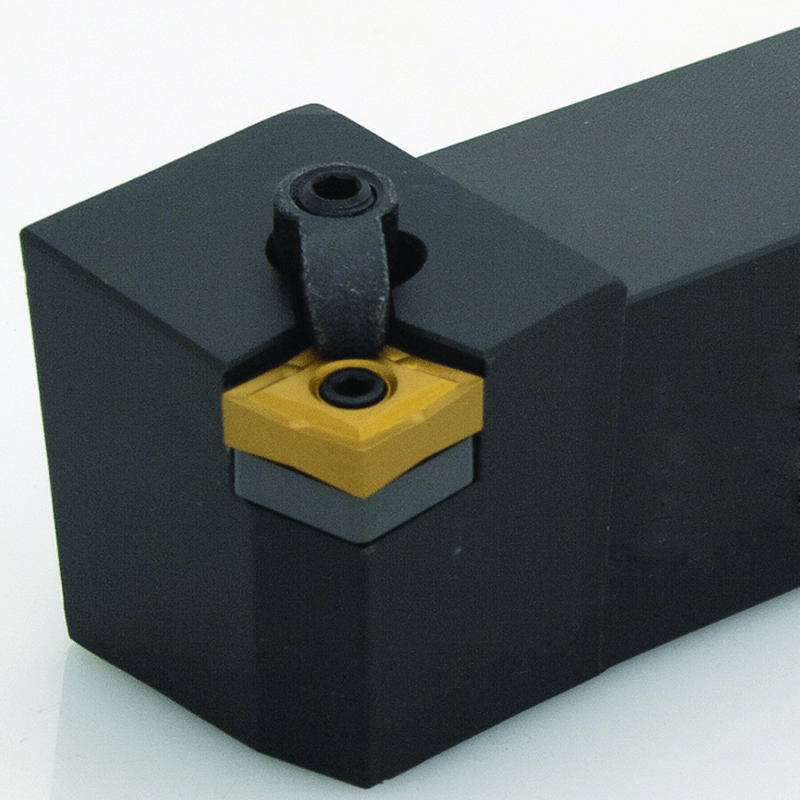

Dorian FL4550070 MCKNR16-4C-1 x 1" SH - RH - Turning Toolholder
SKU: FTS-FL4550070
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Dorian 50070 MCKNR16-4C-1 x 1" SH - RH - Turning ToolholderFull Description
| Shank Height (H) | 1" | Master Insert Identification (MIID) | CNM_43_ |
| Shank Width (B) | 1" | End Chamfer Angle (ECA) | 15 Degrees |
| Overall Length (OAL) | 5" | Clamping System | CL20 |
| Head Length (LH) | 1.25 | Tool Type | Turning Toolholders-Standard |
| Connection Diameter Machine Side (DCONMS) | 1" | Style | MCKNR16-4C |
| Inscribed Circle Diameter (IC) | 1/2" | Insert Style | 5.00 |
| Cutting Direction (HAND) | Right Hand |
• Style K • 15° End Cutting Edge Angle for Negative 80° Diamond CNM_ Inserts
