Brand: Trico

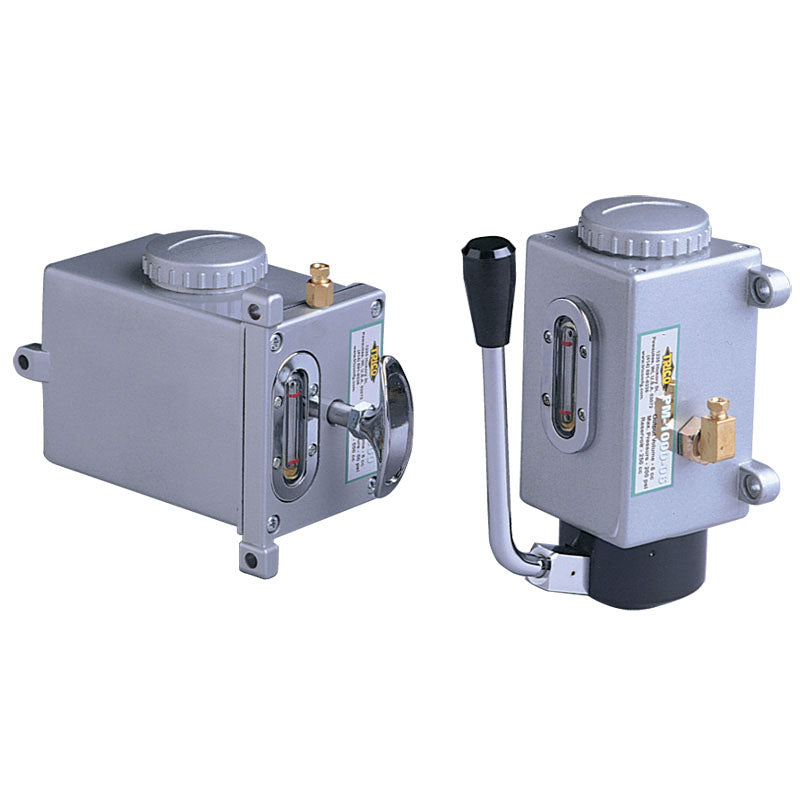

Trico NW50PM100008 PM-1000-08 MANUAL PUMP
SKU: FTS-NW50PM100008
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
*Please note, there is a $200 minimum for all Trico product orders*
Short Description
Trico PM-1000-08 PM-1000-08 MANUAL PUMPFull Description
| Type | Central Lubrication System | Maximum Operating Pressure (PSI) | 200 |
| Pump Type | Manual Piston Pump | Mounting Type | Vertical |
| Reservoir Capacity | 450 cc | Model No | PM-1000-08 |
| Output per Stroke (cc) | 8 | Low Level Alarm and Press Gauge | No |
• Manual Cyclic Pumps • PM Series pumps are used in applications where a fixed output of lubricant is desired. With the PM-10 series, the leverage of the pump handle enables the unit to deliver a higher pressure than most models, providing the ability to lubricate points having some back pressure. With the PM-20 series, lubricant output takes place upon release of the handle using spring discharge to assure the correct amount of lubricant is applied. These pumps are commonly used with meter units in single or multiple point applications. • Aluminum die cast reservoir provides long life • Outputs to 8 cc/stroke • Sight gauge provides liquid level observation • Large fill port for easy adding of lubricant • Drop-in fill port keeps oil clean
