Brand: Reiff & Nestor

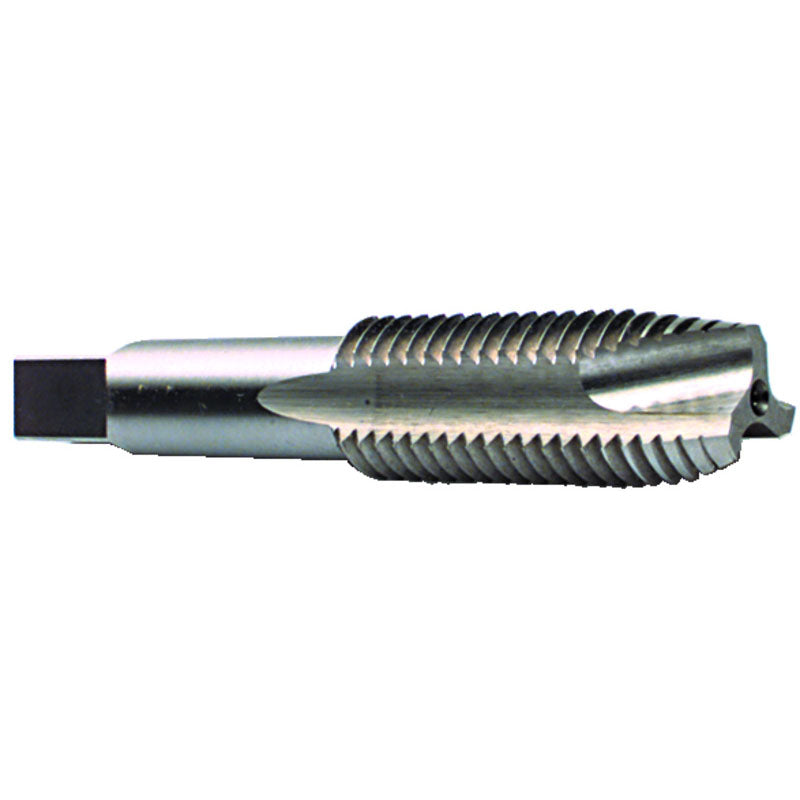

Reiff & Nestor EP4065102 M3X0.5 2FL H-11 O/S (+.005) SPPT PLUG METRIC TAPS 110M
SKU: FTS-EP4065102
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Reiff & Nestor 65102 M3X0.5 2FL H-11 O/S (+.005) SPPT PLUG METRIC TAPS 110MFull Description
| Thread Standard | NC | Thread Cutting Part Length (THL) | 5/8" |
| Thread Size | M3 x 0.5 | Drive Size (DRVS) | 0.11" |
| Thread Diameter Size (TDZ) | M3 | Flute Length | 5/8" |
| Thread Pitch (TP) | 0.5 mm | Flute Type | Straight |
| Thread Tolerance Class (TCTR) | H11 | End Shape | Spiral Point |
| Usable Length (LU) | 5/8" | Style | Plug |
| Overall Length (OAL) | 1-15/16" | Shank Type | Round |
| Coating | Bright | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 2 | Square Size | 0.110" x 3/16" |
| Cutting Edge Material | HSS | Measurement Type | Metric |
| Tool Type | 0.005 Oversize Tap | Series/List # | 110M |
| Connection Diameter Machine Side (DCONMS) | 0.11" | Grade | HSS |
• Metric .005 Oversized
