Brand: Reiff & Nestor

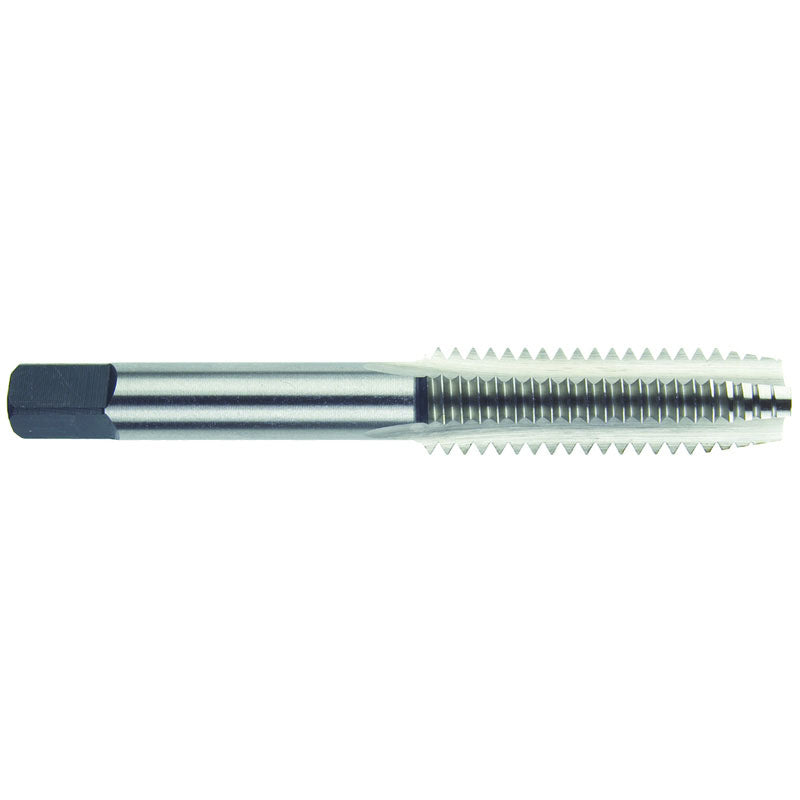

Reiff & Nestor EP4072213 M3X.5 3FL D1 STI BOTT TAP
SKU: FTS-EP4072213
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Reiff & Nestor 72213 M3X.5 3FL D1 STI BOTT TAPFull Description
| Tool Type | STI Tap | Coating | Bright |
| Style | Bottoming | Cutting Direction (HAND) | Right Hand |
| Thread Diameter Size (TDZ) | M3 | Flute Helix Angle (FHA) | 0 Degrees |
| Thread Tolerance Class (TCTR) | D1 | Thread Pitch (TP) | 0.5 mm |
| Thread Standard | Metric STI | Flute Length | 11/16" |
| Thread Cutting Part Length (THL) | 11/16" | Flute Type | Straight Flute |
| Overall Length (OAL) | 2" | Measurement Type | Metric |
| Cutting Edge Material | HSS | Connection Diameter Machine Side (DCONMS) | 0.131" x 1/4" |
| End Shape | Chamfer | Series/List # | 130M |
| Flute Count (NOF) | 3 | Remarks | • Metric STI Taps |
| Chamfer | Bottom | Thread Size | M3 x 0.5 |
• Metric STI Taps
