Brand: HALDER

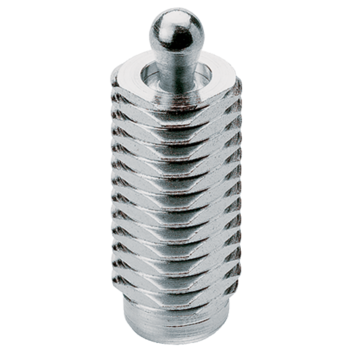

Lateral Plunger with thread, without seal - 22150.0334
SKU: EH-22150.0334
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Halder product orders*
Short Description
Lateral Plungers, with thread, without seal/light spring load | d1=M12 / l1=19 mm / Spring load=~ 40 N | 22150.0334Halder 22150.0334 Data Sheet
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description
To be used for positioning and applying pressure, e.g. during painting and sandblasting.
Material
Body
- Steel, zinc-plated by galvanization
Spring
- Stainless steel
Pin
- Steel, case-hardened, zinc-plated by galvanization
Assembly
Lateral plungers are installed by screwing in by means of a mounting tool.

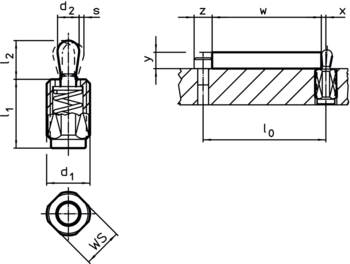

Formula for calculating the center distance for the mounting hole:
l0 = z/2 + w + x,
l0 = center distance,
y = workpiece height,
w = workpiece length,
x = coordinate dimension,
s = stroke,
z = stop diameter
Calculation dimension x:
y greater than or equal to l2 - d2/2, then x = d2/2 - s
or
y smaller than l2 - d2/2, then x = d2/2á-ásá-á[(l2á-ád2/2á-áy)á*á0,123]
Characteristic
Light spring load = spring from stainless steel
