LATERAL PLUNGERS - 22150.0131

Brand: HALDER

LATERAL PLUNGERS - 22150.0131

SKU: EH-22150.0131
MPN: 22150.0131

  • $7.28
    Unit price per
  • Save $0.37
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


*Please note, there is a $50 minimum for all Halder product orders*

Short Description

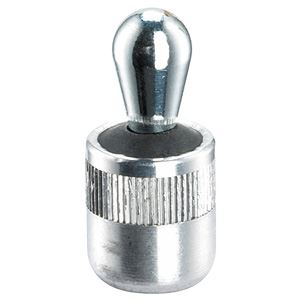

Lateral Plungers, smooth, with seal/standard spring load | d1=12 mm / d2=8 mm / Spring load=~ 100 N | 22150.0131
Halder 22150.0131 Data Sheet

*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*

Full Description

To be used for positioning and applying pressure, e.g. during painting and sandblasting.

Sealed against chips and dirt.

Material

Seal

  • CR

Body

  • Aluminium

Spring

  • Steel, blackened

Pin

  • Steel, case-hardened, zinc-plated by galvanization

Assembly

Installation by pressing in.

Formula for calculating the center distance for the mounting hole:

l0 = z/2 + w + x,

l0 = center distance,

y = workpiece height,

w = workpiece length,

x = coordinate dimension,

s = stroke,

z = stop diameter

Calculation dimension x:

y greater than or equal to l2 - d2/2, then x = d2/2 - s

or

y smaller than l2 - d2/2, then x = d2/2á-ásá-á[(l2á-ád2/2á-áy)á*á0,123]

Characteristic

Standard spring load = spring from steel, blackened
