Brand: Proto

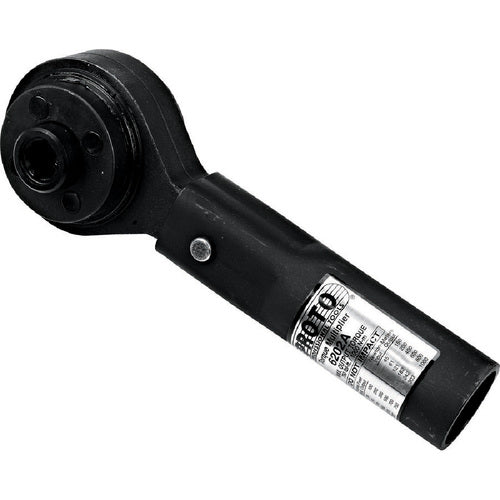

Proto KP4221095 Proto Torque Multiplier 750 ft-lbs
SKU: FTS-KP4221095
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Proto Proto Torque Multiplier 750 ft-lbs KP4221095Full Description
| Type | Torque Multiplier | Maximum Output | 750 feet/lbs |
| Drive Size | 3/4" | Head Depth | 4" |
| Overall Length | 8 19/32" | Head Length | 2 13/16" |
| Torque Range Ft-Lbs | 750 feet/lbs | Handle Length | 5 1/4" |
| Accuracy | 5% | Torque Range In-Lb | 120-1200 |
| System of Measurement | Imperial | Torque Nm | 12.6-135.6 |
| Included | Blow molded box | Input Drive | 1/2" |
| Head Diameter | 3 3/32" | Output Drive | 3/4" |
| Head Height | 2 13/16" | Model No | J6202A |
| Torque Ratio | 01:03.3 |
• Maximum rated input: 227 ft-lbs (308 Nm).• Maximum rated output: 750 ft-lbs (1017 Nm).• Standard torque accuracy is +/- 5% of reading.• Reaction system: tubular reaction bar.• Gear system: single stage planetary.
