Brand: Proto

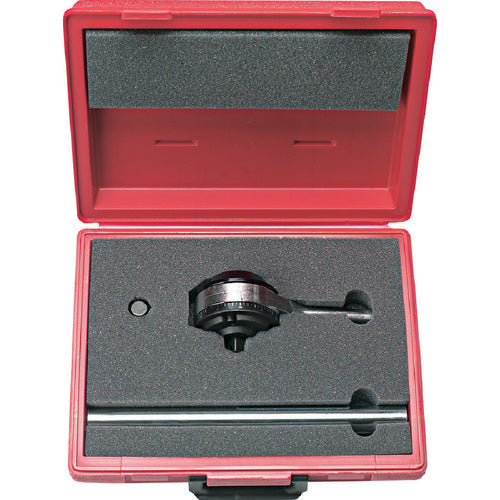

Proto KP4221040 Proto Torque Multiplier 1200 ft-lbs
SKU: FTS-KP4221040
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
KP4221040 Proto Torque Multiplier 1200 ft-lbsFull Description
| Type | Torque Multiplier | Torque Ratio | 1:06 |
| Drive Size | 3/4" | Maximum Output | 750 feet/lbs |
| Overall Length | 19 19/32" | Head Depth | 4" |
| Torque Range Ft-Lbs | 1,200 feet/lbs | Head Length | 3 5/16" |
| Accuracy | 5% | Handle Length | 14 1/8" |
| System of Measurement | Imperial | Input Drive | 1/2" |
| Included | Blow molded box | Output Drive | 3/4" |
| Head Diameter | 4" | Model No | J6212 |
| Head Height | 3 15/16" |
• Maximum rated input: 200 ft-lbs (271 Nm).• Maximum rated output: 1200 ft-lbs (1626 Nm).• Standard torque accuracy is +/- 5% of reading.• Reaction system: tubular reaction bar.• Gear system: single stage planetary.• Angle of turn protractor: 5° increments.
