Brand: Proto

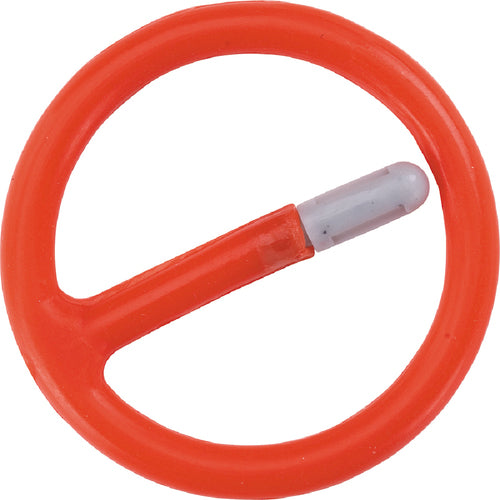

Proto KP4210550 Proto 3/4" Drive Retaining Ring 2-1/4" GRV
SKU: FTS-KP4210550
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Proto Proto 3/4" Drive Retaining Ring 2-1/4" GRV KP4210550Full Description
| Type | Retaining Ring | Drive | 3/4" |
| Height | .187" | Diameter | 2 7/16" |
| Thickness | 3/16" | Model No | JRR07536 |
| Groove Diameter | 2 1/4" |
• Retaining rings are used to help secure sockets onto drive tools. • They are not intended to bear any load. • The rotational forces are between the drive tool and the socket. • The resin crush gauge on the pin helps indicate when a socket is excessively worn and should be replaced. • Drive tool and socket should line up when in use and should not pinch the crush gauge. • Cracked sockets and/or worn drive tools cause each other to turn excessively in relation to each other. This action pinches the small fin or the crush gauge on these retaining rings. If the crush gauge is pinched, it is an indication that the socket and or the drive tool need to be replaced. • One-piece construction, no loose parts. Pin is made of resin which allows the material to compress without breaking. • Part numbers are embossed on the rings near the point at which the pin and ring meet.
