Brand: Dorian

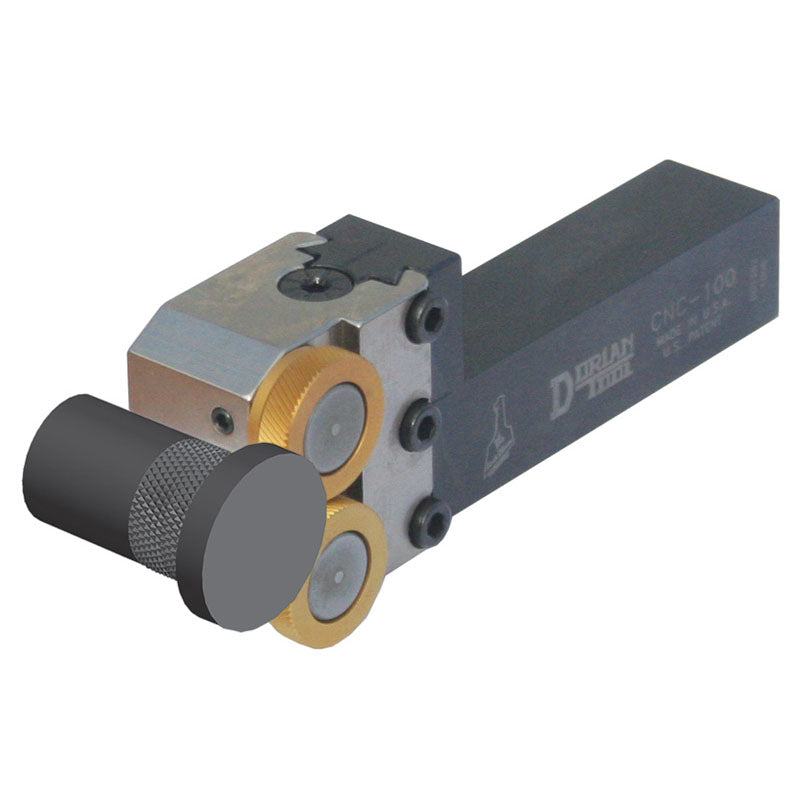

Dorian GG35CNC7564 Knurl Tool - 3/4 x 3/4" SH - No. CNC-75-6-4

SKU: FTS-GG35CNC7564
MPN: 20780

$1,125.99
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*This is a Berkshire eSupply item*
Please note, Berkshire has many challenges with delivery dates, discontinued items, etc. Unfortunately, this is beyond our control and we cannot be held responsible for such. Any and all cancelled orders due to circumstances beyond Freers control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.

Short Description

Dorian 20780 Knurl Tool - 3/4 x 3/4" SH - No. CNC-75-6-4

Full Description

Style	Shoulder Forming - Diameter Range Greater than 5/16"	Tool Type	Shoulder Forming
Shank Size (SS)	3/4"	Model Number	CNC-75-6-4
Includes	Set of Beveled diagonal high speed beveled TiN coated knurl wheels, 25 TPI for a male diamond pattern	Series/List #	20780
Master Insert Identification (MIID)	Knurl Wheel SW4	PackSize	1
Knurl Wheel Size	SW4	Remarks	• No. 6 -- Shoulder Forming • Knurl forming action -- better quality of knurl pattern • Twin SW series knurl wheels for straight or diamond pattern- allows tool to knurl against a square shoulder. • Thrust washer mounts between the knurls and tool head- ensures smooth and even rotation • Supplied with SW3.5R/L–25C Tin-c coated cobalt knurl wheels- adds longer life and better performance to the knurl wheels • Applications: Shoulder diameter range 5/16" and up (best for knurling against a shoulder) -- Diamond/Straight pattern -- Shoulder knurling -- In feed and end feed -- Feed range .004 to .012
Knurl Pin Set Number	GG35SW4OP2S

• No. 6 -- Shoulder Forming • Knurl forming action -- better quality of knurl pattern • Twin SW series knurl wheels for straight or diamond pattern- allows tool to knurl against a square shoulder. • Thrust washer mounts between the knurls and tool head- ensures smooth and even rotation • Supplied with SW3.5R/L–25C Tin-c coated cobalt knurl wheels- adds longer life and better performance to the knurl wheels • Applications: Shoulder diameter range 5/16" and up (best for knurling against a shoulder) -- Diamond/Straight pattern -- Shoulder knurling -- In feed and end feed -- Feed range .004 to .012
