Brand: Dorian

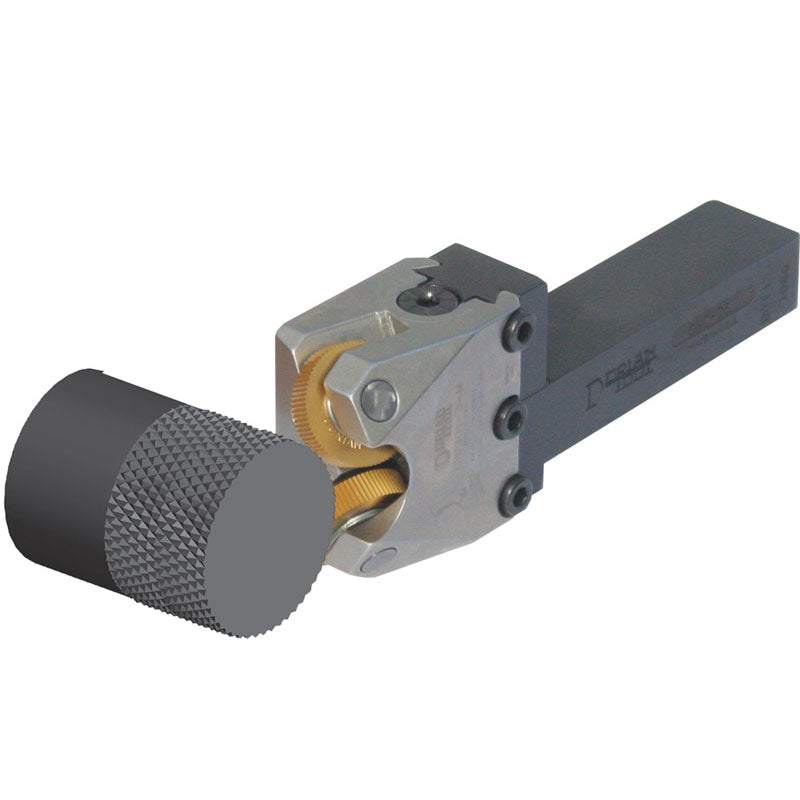

Dorian GG35CNC753M Knurl Tool - 3/4 x 3/4" SH - No. CNC-75-3-M
SKU: FTS-GG35CNC753M
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Dorian 20610 Knurl Tool - 3/4 x 3/4" SH - No. CNC-75-3-MFull Description
| Style | Extra Heavy Duty 60° Diamond Cutting - Diameter Range Greater than 2" | Tool Type | Extra HD Diamond Cutting |
| Shank Size (SS) | 3/4" | Model Number | CNC-75-3-M |
| Includes | Set of Full Face straight high speed TiN coated knurl wheels, 25 TPI for a male diamond pattern | Series/List # | 20610 |
| Master Insert Identification (MIID) | Knurl Wheel MS | PackSize | 1 |
| Knurl Wheel Size | MS | Remarks | • No. 3 -- Extra Heavy Duty Diamond Cutting • Knurl cutting action with minimum stress on the machine. • Uses twin straight M series knurl wheels for diamond pattern- supplies more rigidity for larger diameters. • Knurl wheels mounted between thrust washers- ensures smooth and even rotation. • Supplied with MS–25-C Tin-c coated cobalt knurl wheels- adds longer life and better performance to the knurl wheels. • Applications: Extra heavy duty cutting range 2.0" and up (best for over 2–1/2") -- Large diameter -- Diamond pattern -- End feed -- Feed range .004 to .025 |
| Knurl Pin Set Number | GG35KPS31100C |
• No. 3 -- Extra Heavy Duty Diamond Cutting • Knurl cutting action with minimum stress on the machine. • Uses twin straight M series knurl wheels for diamond pattern- supplies more rigidity for larger diameters. • Knurl wheels mounted between thrust washers- ensures smooth and even rotation. • Supplied with MS–25-C Tin-c coated cobalt knurl wheels- adds longer life and better performance to the knurl wheels. • Applications: Extra heavy duty cutting range 2.0" and up (best for over 2–1/2") -- Large diameter -- Diamond pattern -- End feed -- Feed range .004 to .025
