Brand: Dorian

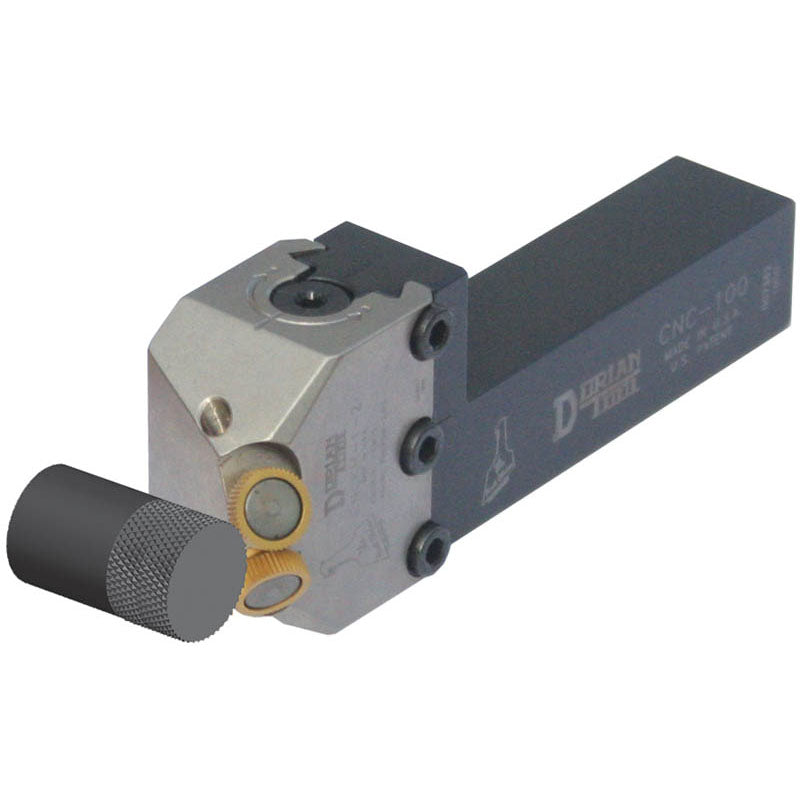

Dorian GG35CNC7512 Knurl Tool - 3/4 x 3/4" SH - No. CNC-75-1-2

SKU: FTS-GG35CNC7512
MPN: 20410

$1,077.46
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*This is a Berkshire eSupply item*
Please note, Berkshire has many challenges with delivery dates, discontinued items, etc. Unfortunately, this is beyond our control and we cannot be held responsible for such. Any and all cancelled orders due to circumstances beyond Freers control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.

Short Description

Dorian 20410 Knurl Tool - 3/4 x 3/4" SH - No. CNC-75-1-2

Full Description

Style	Light Duty 60° Diamond Cutting - Diameter Range 1/2" to 1-1/2"	Tool Type	Small Diamond Cutting
Shank Size (SS)	3/4"	Model Number	CNC-75-1-2
Includes	Set of Full Faced straight high speed TiN coated knurl wheels, 30 TPI for a male diamond pattern	Series/List #	20410
Master Insert Identification (MIID)	Knurl Wheel SW2S	PackSize	1
Knurl Wheel Size	SW2S	Remarks	• No. 1 -- Small Diameter Diamond Cutting • Knurl cutting action with minimum stress on the machine. • Uses twin straight SW series knurl wheels for diamond pattern- allows tool to knurl close to a square shoulder. • Supplied with SW2S–30C Tin-c coated cobalt knurl wheels- adds longer life and better performance to the knurl wheels. • Applications: Small cutting range 5/16" to 1–1/2" (best for up to 1") -- Small diameter -- Diamond pattern -- End feed -- Feed range .004 to .012
Knurl Pin Set Number	GG35PSW20S

• No. 1 -- Small Diameter Diamond Cutting • Knurl cutting action with minimum stress on the machine. • Uses twin straight SW series knurl wheels for diamond pattern- allows tool to knurl close to a square shoulder. • Supplied with SW2S–30C Tin-c coated cobalt knurl wheels- adds longer life and better performance to the knurl wheels. • Applications: Small cutting range 5/16" to 1–1/2" (best for up to 1") -- Small diameter -- Diamond pattern -- End feed -- Feed range .004 to .012
