Brand: Ingersoll Cutting Tools

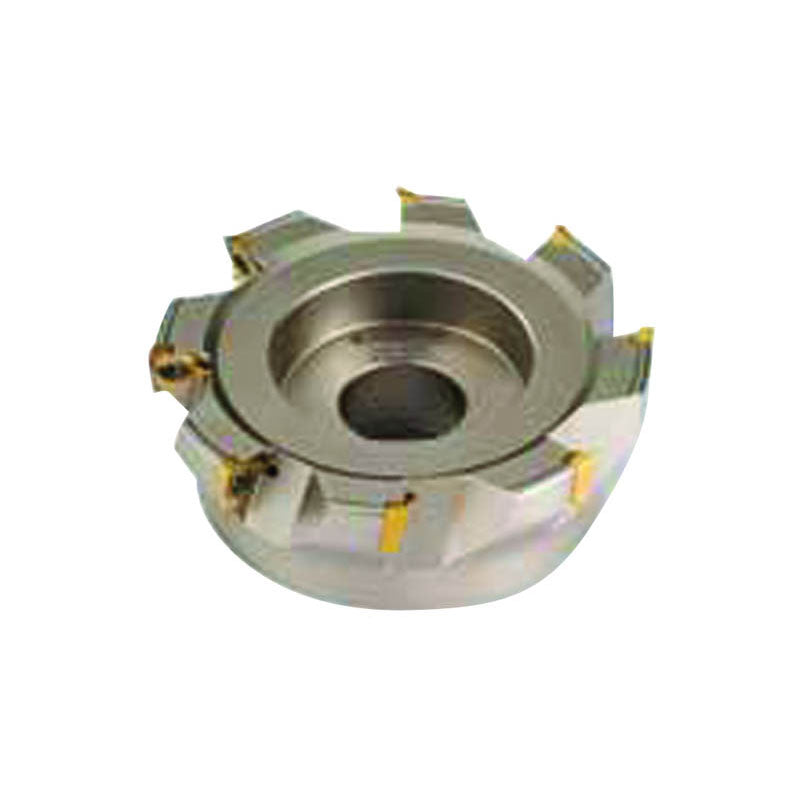

Ingersoll Cutting Tools IC523031429 KJ5D-20R01
SKU: FTS-IC523031429
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Ingersoll 3031429 KJ5D-20R01Full Description
| Cutting Diameter (DC/DCX) | 2" | Overall Length (OAL) | 1.57" |
| Cutting Diameter (DC) | 2" | Ramping Angle Maximum (RMPX) | 1.2 Degrees |
| Cutting Item Count (CICT) | 7 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.27" | Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 3/4" | Measurement Type | Inch |
Family Description
Insert corners: .015", .031", .062" R
