Brand: Kipp
KIPP K1382.08 SPRING PLUNGER STANDARD SPRING FORCE D=M08 L=22 STAINLESS STEEL, FLACH, MIT GEWINDESICHERU, COMP:PIN POM
SKU: KP-K1382.08
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

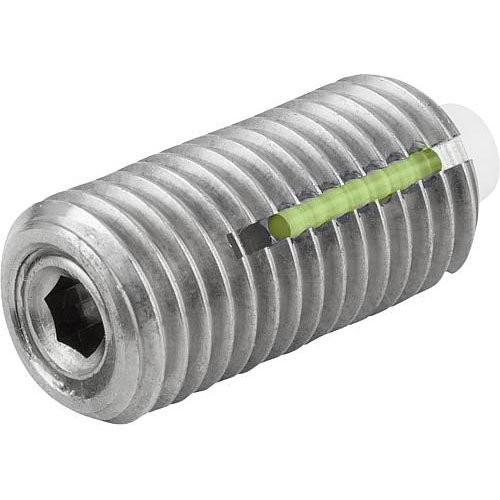

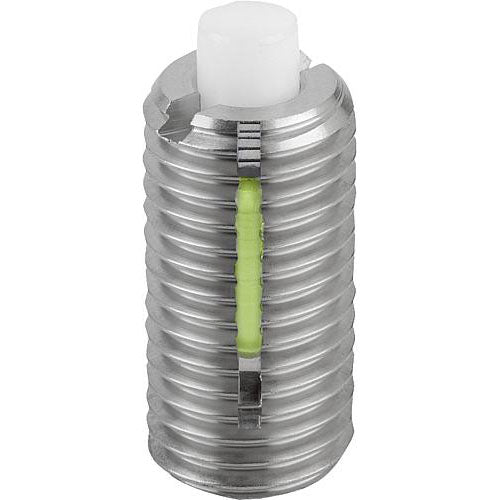

Spring plungers with hex socket and flat POM thrust pin, stainless steel, with thread lock
| Main Material: | Stainless Steel |
| Version 1: | Standard Spring Force |
| Item: | Spring Plunger |
| Rohs: | Yes |
| Pin Style: | Thrust Pin Flat |
| Carrier Style: | Hexagon Socket |

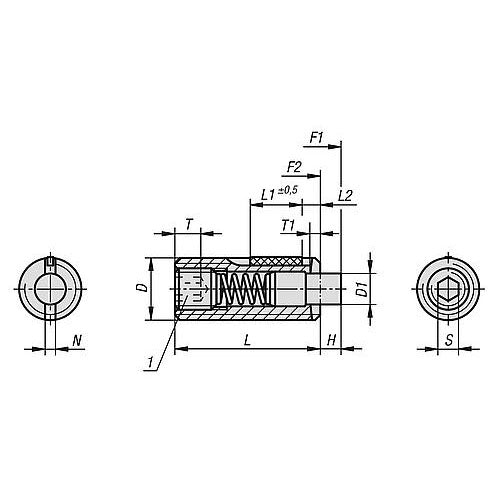

| Loosening Torque Approx. Nm: | 0.37 |
| D: | M8 |
| D1: | 3.5 |
| Tightening Torque Approx. Nm: | 1.05 |
| Spring Force Initial Pressure F1 Approx. N: | 7 |
| Spring Force Final Pressure F2 Approx. N: | 29 |
| H: | 3 |
| L: | 22 |
| L1: | 8 |
| Assembly Key G: | 33 |
| N: | 1.2 |
| S: | 2.5 |
| T: | 3 |
| T1: | 1.4 |
