Brand: Kipp

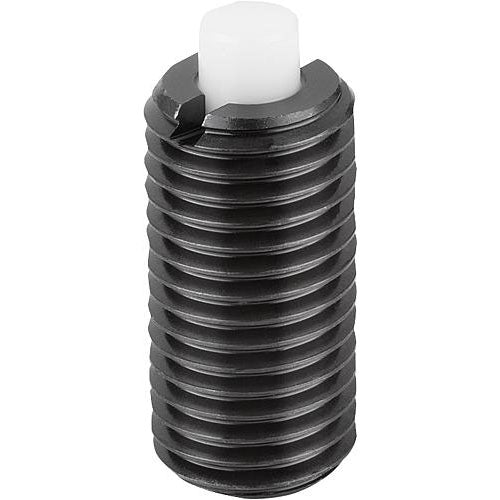

KIPP K1372.08 SPRING PLUNGER STANDARD SPRING FORCE D=M08 L=22 STEEL, FLAT, COMP:PIN POM
SKU: KP-K1372.08
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

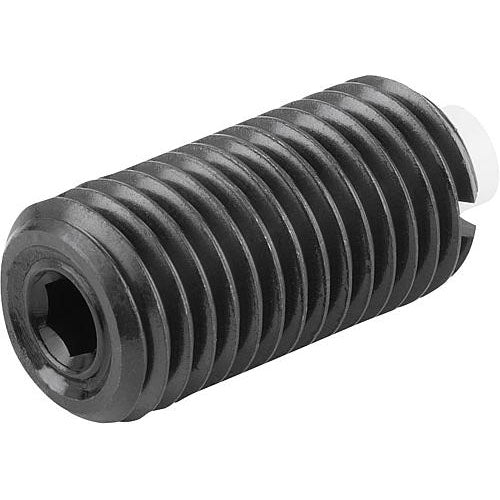

Spring plungers with hexagon socket and flattened POM thrust pin, steel
| Main Material: | Steel |
| Version 1: | Standard Spring Force |
| Item: | Spring Plunger |
| Rohs: | Yes |
| Pin Style: | Thrust Pin Flat |
| Carrier Style: | Hexagon Socket |

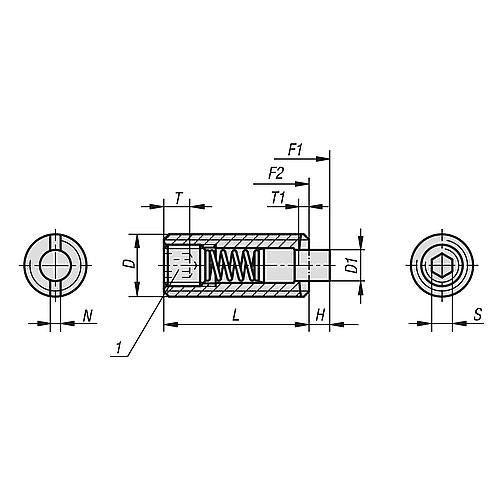

| D: | M8 |
| D1: | 3.5 |
| Spring Force Initial Pressure F1 Approx. N: | 9 |
| Spring Force Final Pressure F2 Approx. N: | 35 |
| H: | 3 |
| L: | 22 |
| Assembly Key G: | 33 |
| N: | 1.2 |
| S: | 2.5 |
| T: | 3 |
| T1: | 1.4 |
