Brand: Kipp
KIPP K0656.5102 SPRING PLUNGER SPRING FORCE, WITH STATUS SENSOR, NORMALLY OPEN D=M10, L=36, L1=4, STEEL, COMP:PIN STEEL, PU=1
SKU: KP-K0656.5102
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

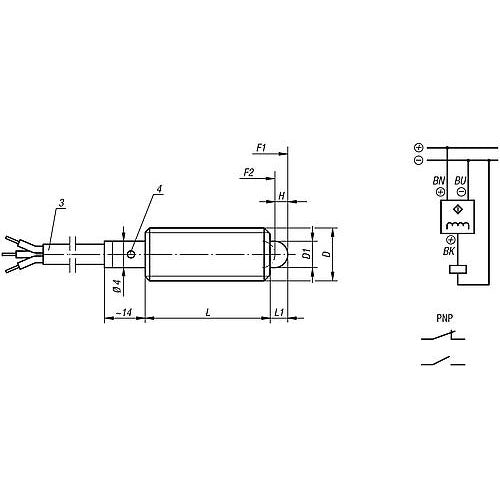

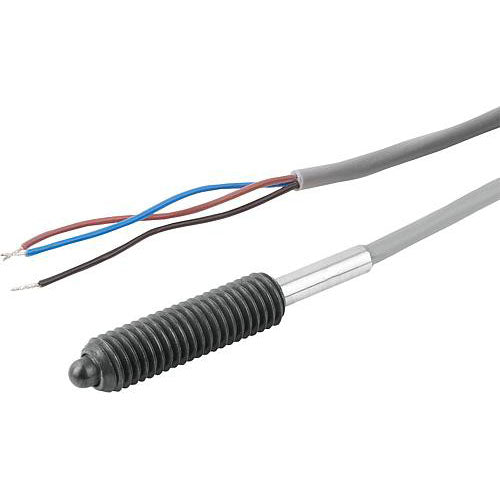

Spring plungers with status sensor
| Main Material: | Steel |
| Version 1: | With Status Sensor |
| Item: | Spring Plunger |
| Rohs: | Yes |
| Packaging Unit: | 1 |
| Pin Style: | Thrust Pin |
| Carrier Style: | Proximity Switch |
| D: | M10 |
| D1: | 4.5 |
| Spring Strength: | Standard |
| Spring Force Initial Pressure F1 Approx. N: | 26 |
| Spring Force Final Pressure F2 Approx. N: | 44 |
| H: | 3 |
| L: | 36 |
| L1: | 4 |
| Switching Contact From Stroke H1: | 2.2 - 2.8 |
