Brand: Kipp

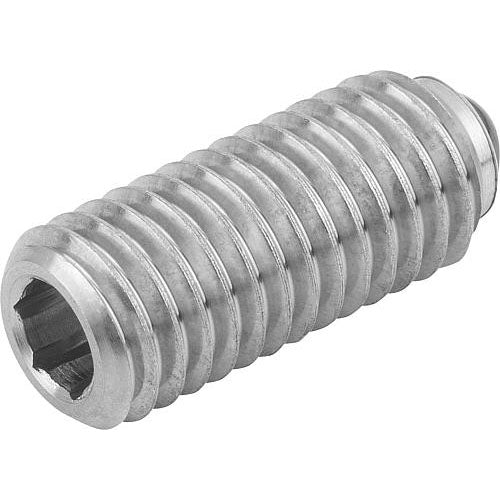

KIPP K0610.08 SPRING PLUNGER, HEXAGON SOCKET, SPRING FORCE, D=M08, L=18, STAINLESS STEEL, COMP:BALL CERAMIC
SKU: KP-K0610.08
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

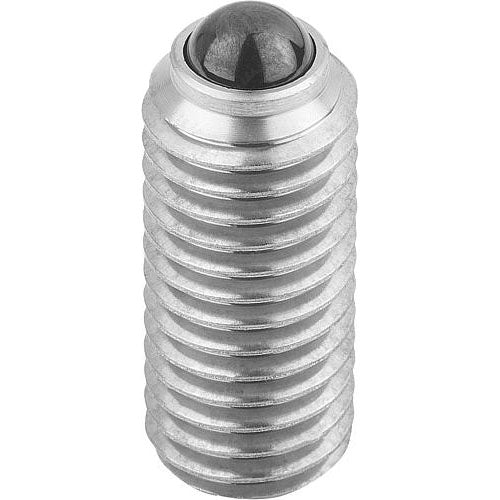

Spring Plungers with hexagon socket and ceramic ball, stainless steel
Material:
Body 1.4305. Ceramic ball Si3N4. Spring 1.4310. Type: Natural finish. Part Number Example: K0610.05 Note:
The combination of excellent material properties is a special feature of silicon nitride (Si3N4). These include, for example, high strength and stability, excellent wear and chemical resistance. Benefits:

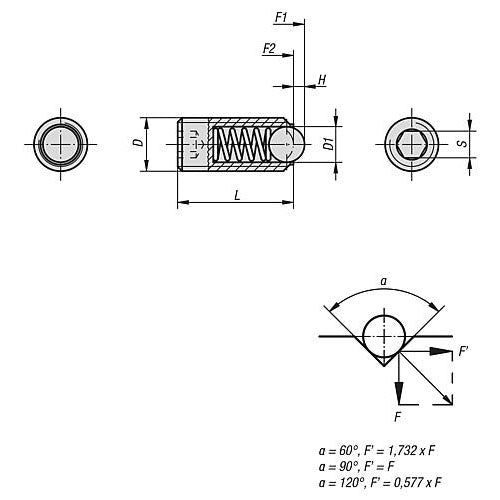

| Main Material: | Stainless Steel |
| Item: | Spring Plunger |
| Pin Style: | Ball |
| Carrier Style: | Hexagon Socket |
| D: | M8 |
| D1: | 5 |
| Spring Strength: | Standard |
| Spring Force Initial Pressure F1 Approx. N: | 15 |
| Spring Force Final Pressure F2 Approx. N: | 30 |
| H: | 1.5 |
| L: | 18 |
| S: | 4 |
