Brand: Kipp

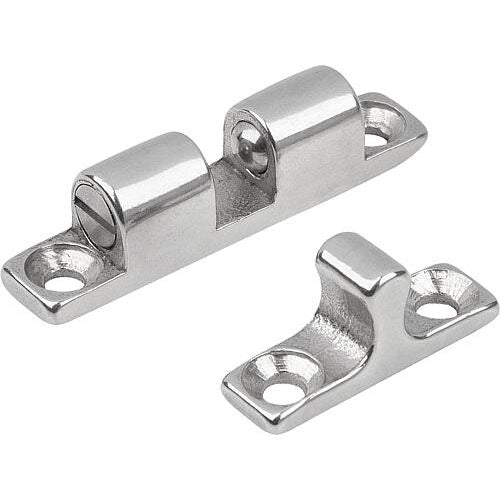

KIPP K0583.500 DOUBLE BALL CATCH, L=50, B=10, H=12,2, A=40, ZINC CHROMED, COMP:BALL STAINLESS STEEL
SKU: KP-K0583.500
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Double ball catches

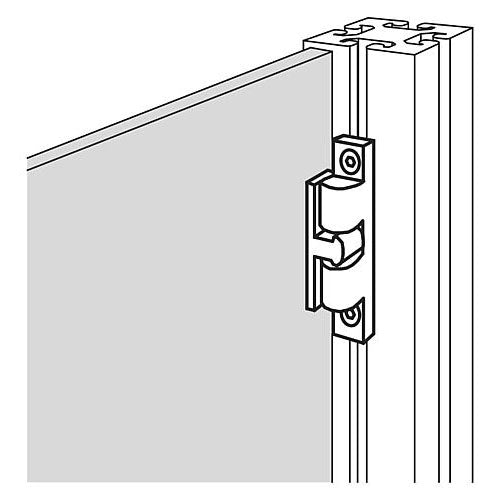

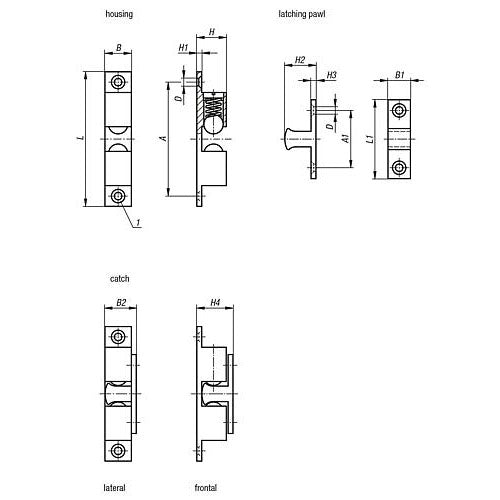

Material: Type: Brass and die-cast zinc chromed. Stainless steel abrasive blasted. Balls and springs bright stainless steel. Part Number Example: K0583.50 Note: Quick catch for various applications such as holding doors, hatches, screens etc. closed. The double ball catch consists of a housing and a latch bracket that engages between the two balls. The latch bracket can engage from the front or the side. The engagement pressure is adjustable. Drawing reference: 1) counterbore DIN 74-A
| Main Material: | Zinc |
| Item: | Double Ball Catch |
| Rohs: | Yes |
| A: | 40 |
| A1: | 20 |
| B: | 10 |
| B1: | 9 |
| B2: | 12.9 |
| D: | 4.2 |
| Spring Strength: | Standard |
| H: | 12.2 |
| H1: | 2.9 |
| H2: | 13.2 |
| H3: | 2.9 |
| H4: | 15.9 |
| Clamping Force Ca. N: | 18 |
| L: | 50 |
| L1: | 30 |
