Brand: Kipp
KIPP K0582.06 SPRING PLUNGER SPRING FORCE, WITH DETENT RING, D=5,95 L=6, STAINLESS STEEL, COMP:BALL STAINLESS STEEL, PU=10
SKU: KP-K0582.06
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

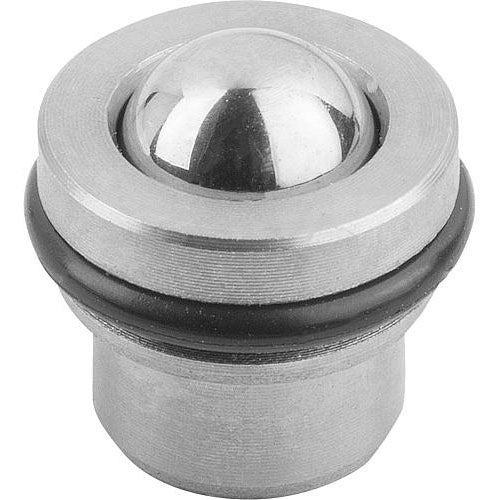

Spring Plungers push fit, with o-ring seal

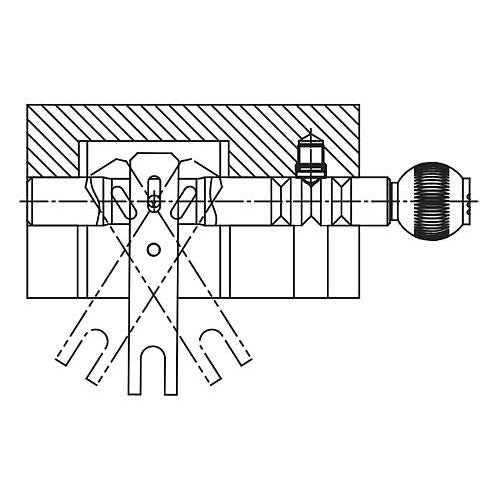

Material: Body, spring and ball stainless steel. O-ring NBR Type: Body bright. Ball hardened, bright. O-ring black. Part Number Example: K0582.05 Note: These Spring Plungers with O-ring are suitable for overhead installation or for installing in difficult to access positions. They can be pressed into the location hole by hand or using simple assembly tools. The O-ring holds the plunger in place and prevents it falling out. Other components can be easily installed without the need for further assembly aids.
| Main Material: | Stainless Steel |
| Version 1: | With Detent Ring |
| Item: | Spring Plunger |
| Rohs: | Yes |
| Packaging Unit: | 10 |
| Pin Style: | Ball |

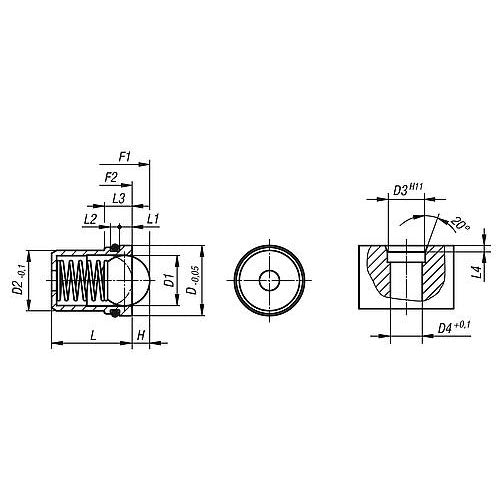

| D: | 5.95 |
| D1: | 4 |
| D2: | 5 |
| D3: | 6 |
| D4: | 5.1 |
| Spring Strength: | Standard |
| Spring Force Initial Pressure F1 Approx. N: | 4 |
| Spring Force Final Pressure F2 Approx. N: | 7 |
| H: | 1 |
| L: | 6 |
| L1: | 1 |
| L2: | 0.7 |
| L3: | 2.3 |
| L4: | 0.7 |
