Brand: Kipp

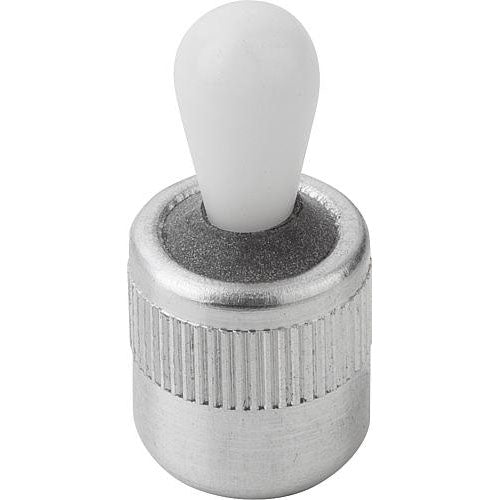

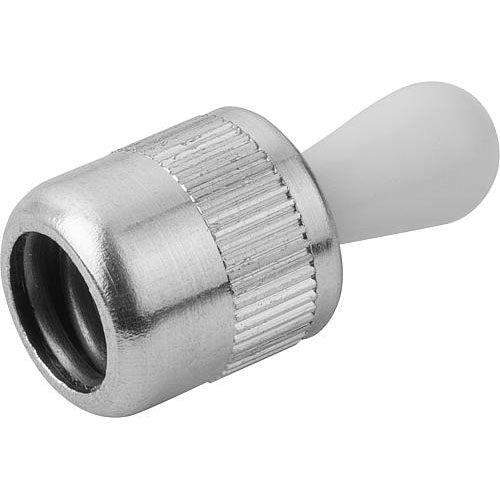

KIPP K0368.72034CM LATERAL SPRING PLUNGER, SPRING FORCE W. SEAL D=1/4, D2=1/4, L1=4, ALUMINIUM, COMP:POLYACETAL
SKU: KP-K0368.72034CM
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Lateral Spring Plungers with seal, pressure pin in plastic, spring in steel, inch

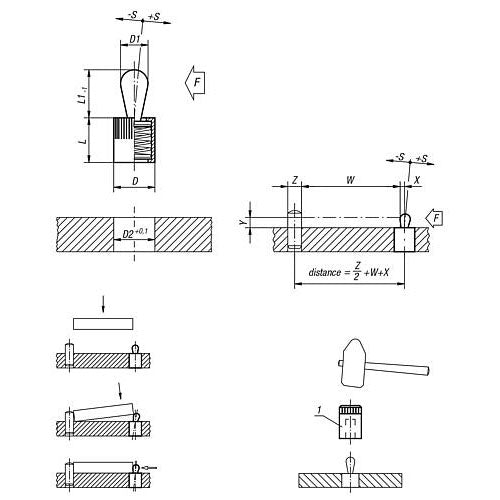

Material: body in aluminum; spring in steel; pressure pin in plastic Type: body blue electro zinc-plated. Note: Lateral Spring Plungers are for positioning, clamping, holding and fastening of workpieces during engraving, labeling, drilling, reaming, tapping, honing, grinding, welding, soldering, tooling, assembling, etc. Eccentric adjustment bushings see are also available. Dimensions W and Z are customer specific. For the inch series, dimension D and D2 are in inches, all other dimensions are in mm. Drawing reference: 1) assembly tool
| Main Material: | Aluminum |
| Version 1: | With Seal |
| Item: | Lateral Spring Plunger |
| Rohs: | Yes |
| D: | 1/4 |
| D1: | 3 |
| D2: | 1/4 |
| F Ca.N: | 10 |
| L: | 7 |
| L1: | 4 |
| X If Y = 1: | 0.8 |
| X If Y = 2: | 1 |
| X If Y = 3: | 1 |
| X If Y = 4.5: | 1 |
| X If Y = 6: | 1 |
| X If Y = 8: | 1 |
| ±S: | 0.5 |
