Brand: Kipp

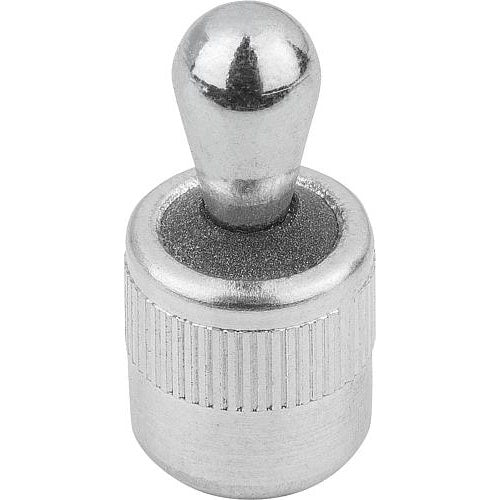

KIPP K0368.22056 LATERAL SPRING PLUNGER, SPRING FORCE W. SEAL D=10, D2=10, L1=6, ALUMINIUM, COMP:STEEL
SKU: KP-K0368.22056
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Lateral Spring Plungers with seal, pressure pin and spring in steel, metric
Material: Body in aluminum; spring in steel; pressure pin in steel Version: Thrust pin (steel) hardened and galvanized. Sleeve blue galvanized. Note: Lateral spring plungers are for positioning, clamping, holding and securing workpieces and parts for engraving, labelling, drilling, reaming, tapping, honing, grinding, welding, soldering, assembling, mounting etc. Suitable eccentric adjustment bush see K0369. W and Z are customer specified.
| Main Material: | Aluminum |
| Version 1: | With Seal |
| Item: | Lateral Spring Plunger |
| Rohs: | Yes |

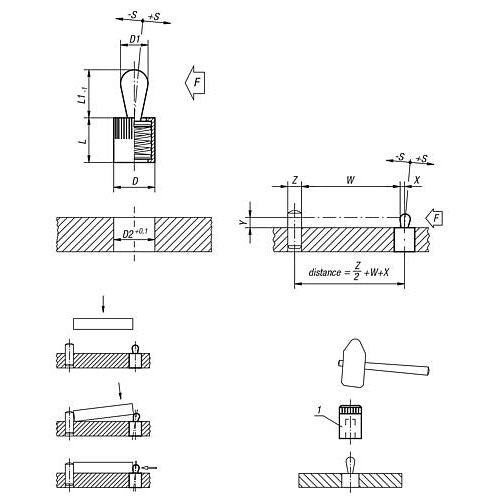

| D: | 10 |
| D1: | 5 |
| D2: | 10 |
| F Ca.N: | 50 |
| L: | 12 |
| L1: | 6 |
| X If Y = 2: | 1.5 |
| X If Y = 3: | 1.7 |
| X If Y = 4.5: | 1.7 |
| X If Y = 6: | 1.7 |
| X If Y = 8: | 1.7 |
| ±S: | 0.8 |
