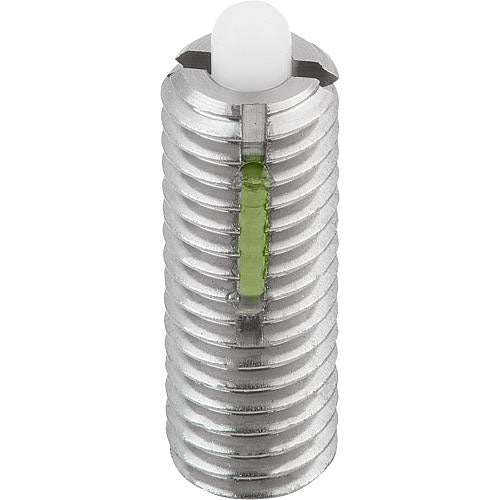

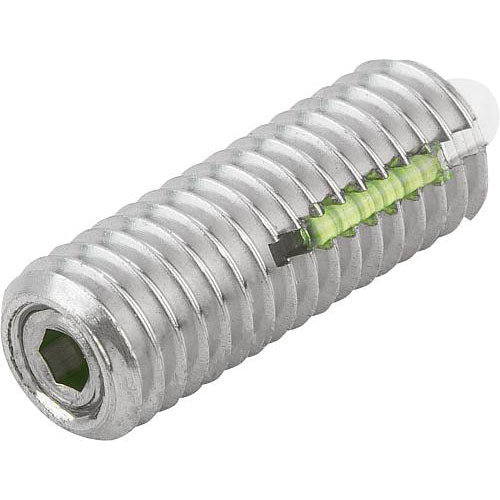

KIPP K0330.A1 SPRING PLUNGER STANDARD SPRING FORCE D=10-32 L=18, STAINLESS STEEL, WITH THREAD LOCK, COMP:PIN POM, PU=5
KIPP K0330.A1 SPRING PLUNGER STANDARD SPRING FORCE D=10-32 L=18, STAINLESS STEEL, WITH THREAD LOCK, COMP:PIN POM, PU=5
KIPP K0330.A1 SPRING PLUNGER STANDARD SPRING FORCE D=10-32 L=18, STAINLESS STEEL, WITH THREAD LOCK, COMP:PIN POM, PU=5

Brand: Kipp

KIPP K0330.A1 SPRING PLUNGER STANDARD SPRING FORCE D=10-32 L=18, STAINLESS STEEL, WITH THREAD LOCK, COMP:PIN POM, PU=5

SKU: KP-K0330.A1
MPN: K0330.A1

Only 0 left!
Please Email SALES For Pricing

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

KIPP K0330.A1 SPRING PLUNGER STANDARD SPRING FORCE D=10-32 L=18, STAINLESS STEEL, WITH THREAD LOCK, COMP:PIN POM, PU=5
Spring Plungers with thread lock, pin style, hexagon socket, stainless steel body and plastic pin, standard end pressure, inch

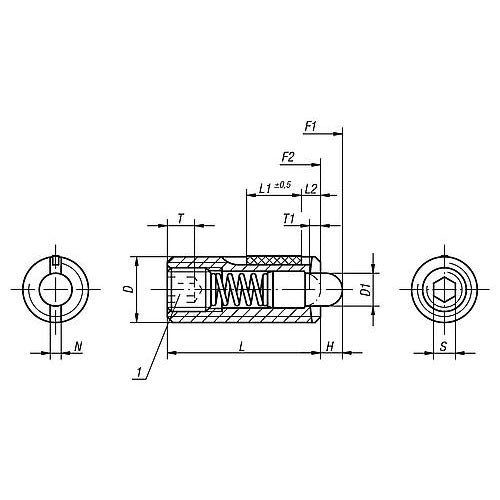

Material: Type: Bright. Part Number Example: K0330.A6 Note: For the inch series, dimension D and S are in inches, all other dimensions are in mm. Drawing reference: L2 = ca. two full threads 1) grub screw glued in
Main Material: Stainless Steel
Item: Spring Plunger
Packaging Unit: 5
Pin Style: Thrust Pin
Carrier Style: Hexagon Socket
Loosening Torque Approx. Nm: 0.08
D: 10-32
D1: 2.4
Tightening Torque Approx. Nm: 0.12
Spring Strength: Standard
Spring Force Initial Pressure F1 Approx. N: 5
Spring Force Final Pressure F2 Approx. N: 17
H: 2.3
L: 18
L1: 7
N: 0.8
S: 1/16
T: 2
T1: 0.8
