Brand: Kipp
KIPP K0330.10 SPRING PLUNGER STANDARD SPRING FORCE D=M10 L=22, STAINLESS STEEL, WITH THREAD LOCK, COMP:PIN POM
SKU: KP-K0330.10
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

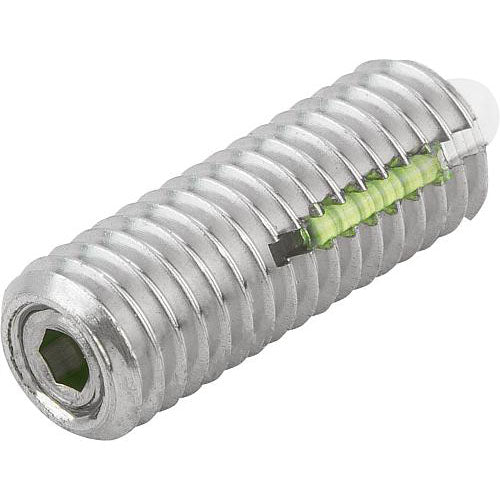

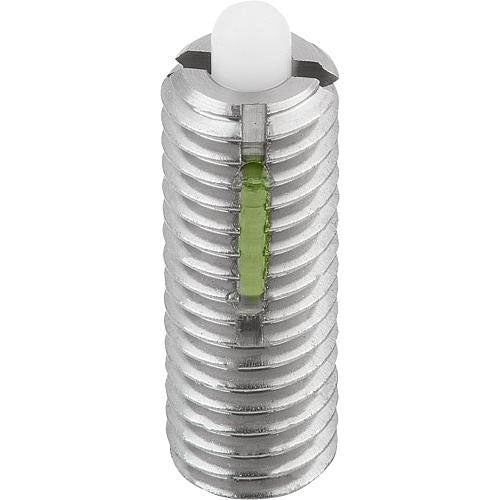

Spring Plungers with thread lock, pin style, hexagon socket, stainless steel body and plastic pin, standard end pressure, metric

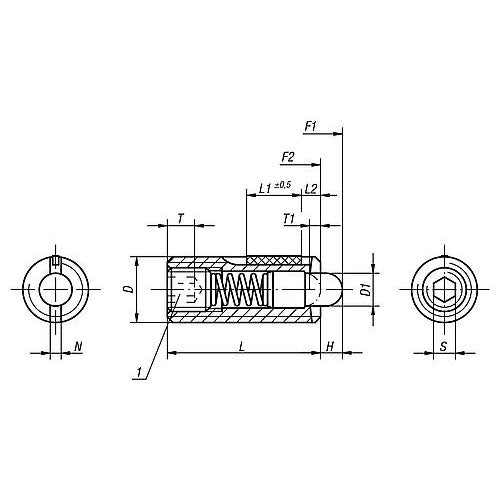

Material: body 1.4305 (AISI 303 equivalent). Thrust pin POM. Spring 1.4310 (AISI 301 equivalent) wire LONG-LOK thread lock Nylon. Type: Bright. Drawing reference: L2 = ca. two full threads 1) grub screw glued-in
| Main Material: | Stainless Steel |
| Item: | Spring Plunger |
| Pin Style: | Thrust Pin |
| Carrier Style: | Hexagon Socket |
| Loosening Torque Approx. Nm: | 0.6 |
| D: | M10 |
| D1: | 4 |
| Tightening Torque Approx. Nm: | 1.3 |
| Spring Strength: | Standard |
| Spring Force Initial Pressure F1 Approx. N: | 8 |
| Spring Force Final Pressure F2 Approx. N: | 31 |
| H: | 3 |
| L: | 22 |
| L1: | 9 |
| N: | 1.6 |
| S: | 3 |
| T: | 3.5 |
| T1: | 1.4 |
