Brand: Kipp

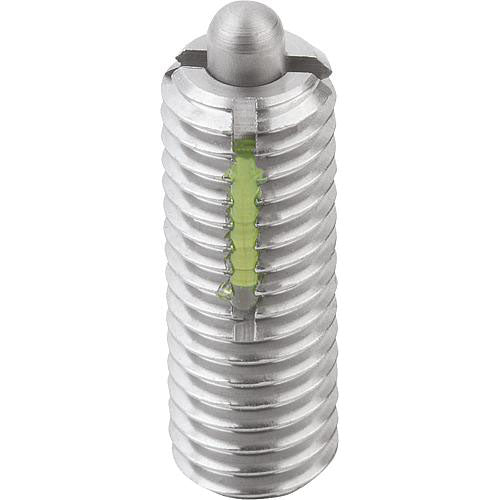

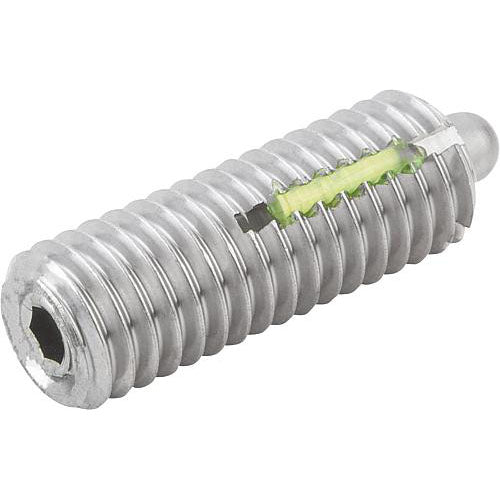

KIPP K0329.208 SPRING PLUNGER INTENSIFIED SPRING FORCE, WITH THREAD LOCK D=M08 L=22, STAINLESS STEEL, COMP:PIN STAINLESS
SKU: KP-K0329.208
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

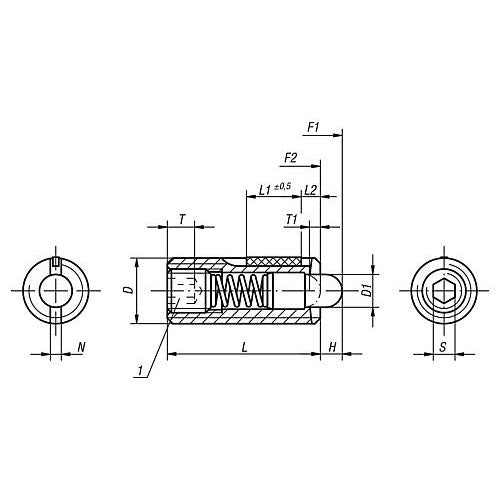

Spring Plungers with thread lock, pin style, hexagon socket, stainless steel body and pin, heavy end pressure, metric
Material: Body 1.4305; pressure pin 1.4034; spring 1.4310 LONG-LOK thread system in nylon Version: Body natural finish, pressure pin hardened
| Main Material: | Stainless Steel |
| Version 1: | With Thread Lock |
| Item: | Spring Plunger |
| Pin Style: | Thrust Pin |
| Carrier Style: | Hexagon Socket |
| Loosening Torque Approx. Nm: | 0.37 |
| D: | M8 |
| D1: | 3.5 |
| Tightening Torque Approx. Nm: | 1.05 |
| Spring Strength: | Intensified |
| Spring Force Initial Pressure F1 Approx. N: | 15 |
| Spring Force Final Pressure F2 Approx. N: | 48 |
| H: | 3 |
| L: | 22 |
| L1: | 8 |
| N: | 1.2 |
| S: | 2.5 |
| T: | 3 |
| T1: | 1.4 |
