Brand: Kipp

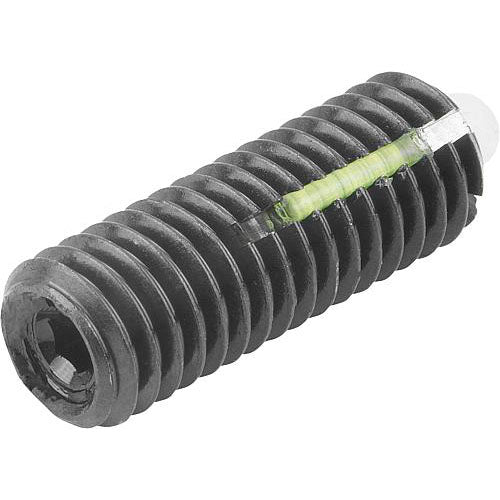

KIPP K0328.A3 SPRING PLUNGER STANDARD SPRING FORCE, WITH THREAD LOCK D=5/16-18 L=22, STEEL, COMP:PIN POM, PU=10
SKU: KP-K0328.A3
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Spring Plungers with thread lock, pin style, hexagon socket, steel body and plastic pin, standard end pressure, inch

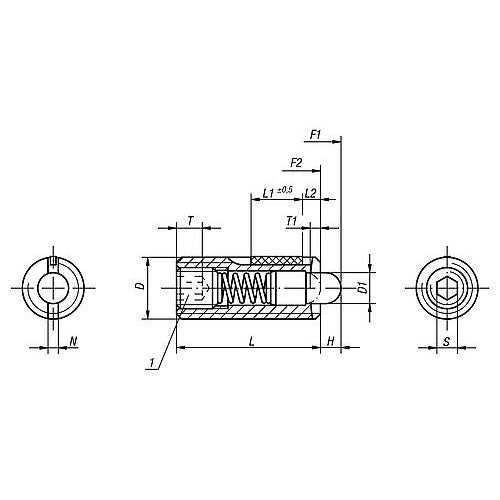

Material: Body steel quality class 5.8. Thrust pin POM. Spring Class D steel wire. LONG-LOK thread lock Nylon. Type: Black oxide finish. Part Number Example: K0328.A1 Note: For the inch series, dimension D and S are in inches, all other dimensions are in mm. Drawing reference: L2 = ca. two full threads 1) grub screw glued in
| Main Material: | Steel |
| Version 1: | With Thread Lock |
| Item: | Spring Plunger |
| Packaging Unit: | 10 |
| Pin Style: | Thrust Pin |
| Carrier Style: | Hexagon Socket |
| Loosening Torque Approx. Nm: | 0.37 |
| D: | 5/16-18 |
| D1: | 3.5 |
| Tightening Torque Approx. Nm: | 1.05 |
| Spring Strength: | Standard |
| Spring Force Initial Pressure F1 Approx. N: | 9 |
| Spring Force Final Pressure F2 Approx. N: | 35 |
| H: | 3 |
| L: | 22 |
| L1: | 8 |
| N: | 1.2 |
| S: | 3/32 |
| T: | 3 |
| T1: | 1.4 |
