Brand: Kipp
KIPP K0328.1A6 SPRING PLUNGER LIGHT SPRING FORCE, WITH THREAD LOCK D=5/8-11 L=32, STEEL, COMP:PIN POM, PU=5
SKU: KP-K0328.1A6
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Spring Plungers with thread lock, pin style, hexagon socket, steel body and plastic pin, light end pressure, inch

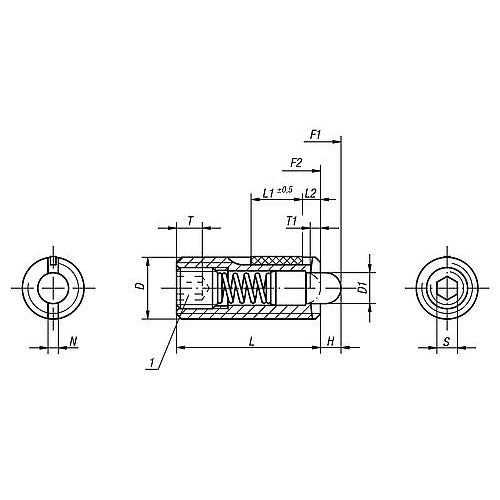

Material: body steel grade 5.8. Thrust pin POM. Spring grade D steel wire. LONG-LOK thread lock Nylon. Type: Black oxidized. Note: For the inch series, dimension D and S are in inches, all other dimensions are in mm. For the inch series, dimension D and S are in inches, all other dimensions are in mm. Drawing reference: L2 = ca. two full threads 1) grub screw glued-in
| Main Material: | Steel |
| Version 1: | With Thread Lock |
| Item: | Spring Plunger |
| Packaging Unit: | 5 |
| Pin Style: | Thrust Pin |
| Carrier Style: | Hexagon Socket |
| Loosening Torque Approx. Nm: | 3 |
| D: | 5/8-11 |
| D1: | 7.5 |
| Tightening Torque Approx. Nm: | 3.9 |
| Spring Strength: | Light |
| Spring Force Initial Pressure F1 Approx. N: | 20 |
| Spring Force Final Pressure F2 Approx. N: | 45 |
| H: | 5 |
| L: | 32 |
| L1: | 14 |
| N: | 2.5 |
| S: | 3/16 |
| T: | 6 |
| T1: | 2.5 |
