Brand: Kipp
KIPP K0327.05 SPRING PLUNGER STANDARD SPRING FORCE, WITH THREAD LOCK D=M05 L=18, STEEL, COMP:PIN STEEL
SKU: KP-K0327.05
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

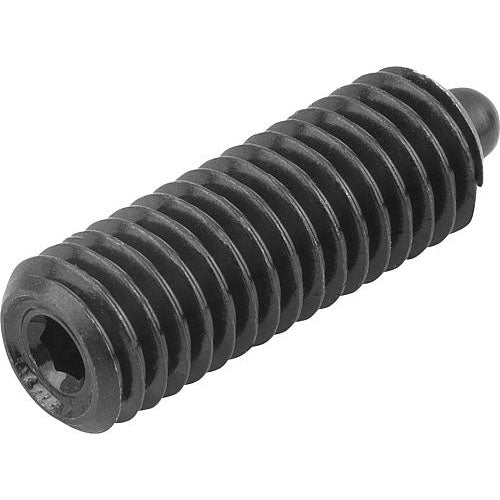

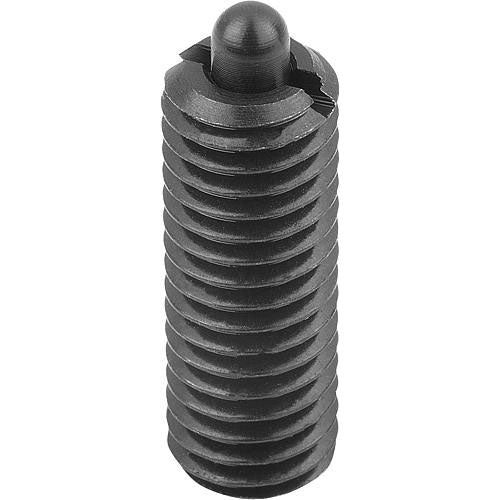

Spring Plungers with thread lock, pin style, hexagon socket, steel body and pin, standard end pressure, metric
Material: Sleeve steel grade 5.8. Thrust pin steel. Spring in spring steel class D. LONG-LOK thread lock nylon Version: Black oxidised. Thrust pin hardened.
| Main Material: | Steel |
| Version 1: | With Thread Lock |
| Item: | Spring Plunger |
| Pin Style: | Thrust Pin |
| Carrier Style: | Hexagon Socket |
| Loosening Torque Approx. Nm: | 0.08 |

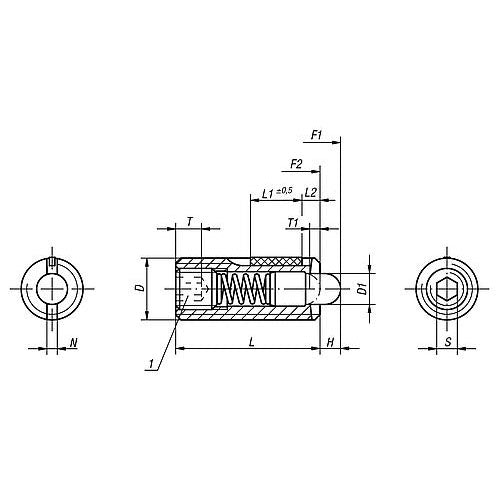

| D: | M5 |
| D1: | 2.4 |
| Tightening Torque Approx. Nm: | 0.12 |
| Spring Strength: | Standard |
| Spring Force Initial Pressure F1 Approx. N: | 6 |
| Spring Force Final Pressure F2 Approx. N: | 20 |
| H: | 2.3 |
| L: | 18 |
| L1: | 7 |
| N: | 0.8 |
| S: | 1.5 |
| T: | 2 |
| T1: | 0.8 |
