Brand: Kipp

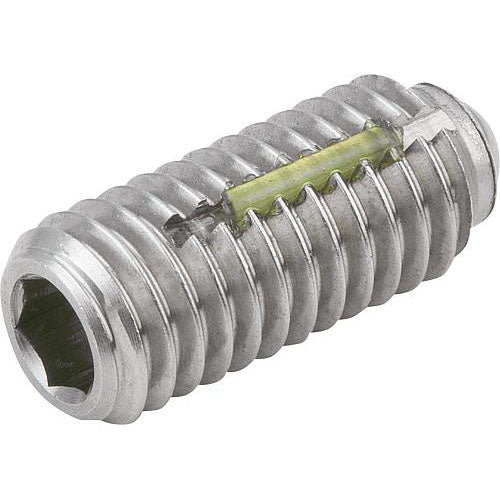

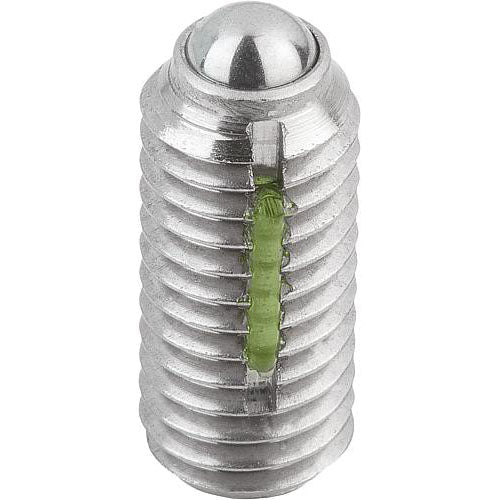

KIPP K0326.AJ SPRING PLUNGER STANDARD SPRING FORCE, WITH THREAD LOCK D=1/4-28 L=15, STAINLESS STEEL, COMP:BALL STAINLESS STEEL, PU=10
SKU: KP-K0326.AJ
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Spring Plungers with thread lock ball style, hexagon socket, stainless steel, standard end pressure, inch

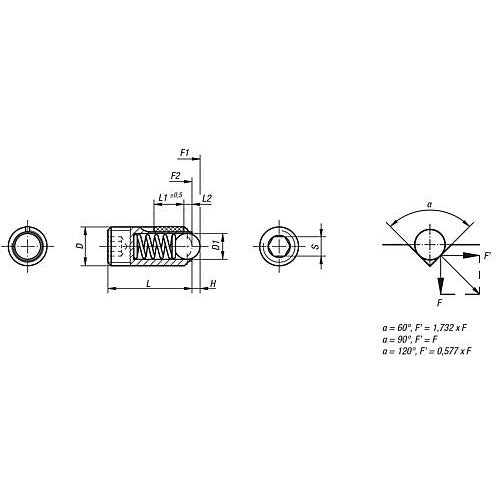

Material: Type: Bright. Ball hardened. Part Number Example: K0326.A2 Note: For the inch series, dimension D and S are in inches, all other dimensions are in mm. Drawing reference: L2 = approx. 2x thread pitch
| Main Material: | Stainless Steel |
| Version 1: | With Thread Lock |
| Item: | Spring Plunger |
| Packaging Unit: | 10 |
| Pin Style: | Ball |
| Carrier Style: | Hexagon Socket |
| Loosening Torque Approx. Nm: | 0.21 |
| D: | 1/4-28 |
| D1: | 3.5 |
| Tightening Torque Approx. Nm: | 0.44 |
| Spring Strength: | Standard |
| Spring Force Initial Pressure F1 Approx. N: | 9 |
| Spring Force Final Pressure F2 Approx. N: | 13 |
| H: | 1 |
| L: | 15 |
| L1: | 7 |
| S: | 1/8 |
