Brand: Kipp

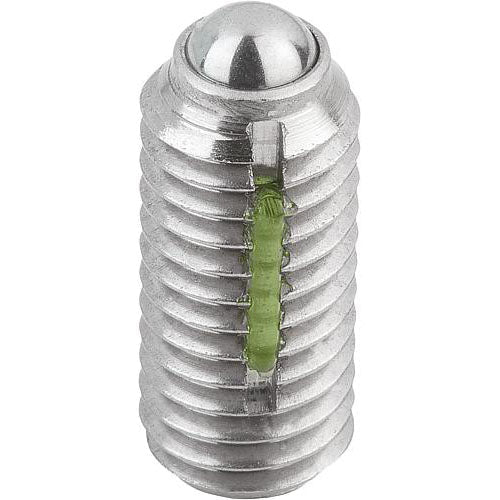

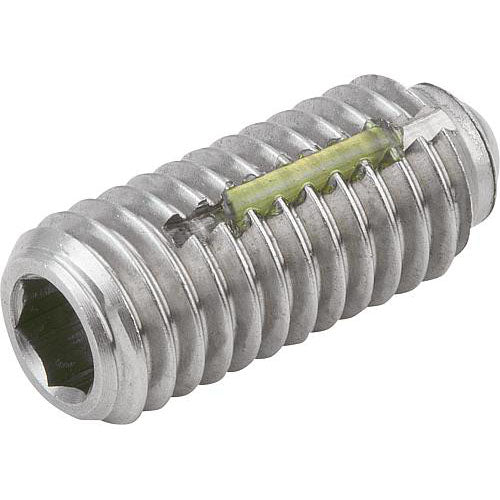

KIPP K0326.10 SPRING PLUNGER STANDARD SPRING FORCE, WITH THREAD LOCK D=M10 L=23, STAINLESS STEEL, COMP:BALL STAINLESS STEEL
SKU: KP-K0326.10
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Spring Plungers with thread lock ball style, hexagon socket, stainless steel, standard end pressure, metric

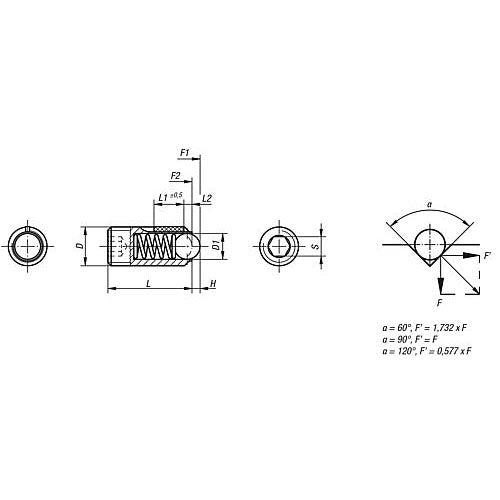

Material: body 1.4305 (AISI 303 equivalent). Ball 1.4034 (AISI 420 equivalent). Spring 1.4310 (AISI 301 equivalent). LONG-LOK thread lock, Nylon. Type: Bright. Ball hardened. Drawing reference: L2 = approx. 2x thread pitch
| Main Material: | Stainless Steel |
| Version 1: | With Thread Lock |
| Item: | Spring Plunger |
| Pin Style: | Ball |
| Carrier Style: | Hexagon Socket |
| Loosening Torque Approx. Nm: | 0.6 |
| D: | M10 |
| D1: | 6 |
| Tightening Torque Approx. Nm: | 1.3 |
| Spring Strength: | Standard |
| Spring Force Initial Pressure F1 Approx. N: | 20 |
| Spring Force Final Pressure F2 Approx. N: | 35 |
| H: | 2 |
| L: | 23 |
| L1: | 9 |
| S: | 5 |
